Texas Instruments HD3SS6126
The HD3SS6126 device is a high-speed, passive switch that is designed for USB applications to route both SuperSpeed USB RX and TX and USB 2.0 DP and DM signals from a source to two destinations or vice versa. The device can also be used for DisplayPort, PCI-Express™, SATA, SAS, and XAUI applications. The HD3SS6126 device can be used in either sink-side or source-side applications.| Part No. | HD3SS6126 |
|---|---|
| Datasheet | HD3SS6126 Download |
| Manufacturer |  Texas Instruments |
| Description | USB 3.0 and USB 2.0 Differential Switch 2:1/1:2 MUX/DEMUX |
| Buy | Stock & Price |
FEATURES
●1 Ideal for USBAPPLICATIONS
– Signal Switch for USB 3.0 (SuperSpeed USB and USB 2.0 HS/FS/LS)● Three Bidirectional Differential Pair Channel MUX/DEMUX Switches Also Suitable for DisplayPort, PCIe Gen1/2/3, SATA 1.5/3/6G, SAS 1.5/3/6G and XAUI
APPLICATIONS
● Supports Data Rates up to 10 Gbps on HighBandwidth Path (SS)● VCC Operating Range 3.3 V ± 10%
● Wide –3-dB Differential BW of More Than 10 GHz on High-Bandwidth Path (SS)
● Uses a Unique Adaptation Method to Maintain a Constant Channel Impedance Over the Supported Common-Mode Voltage Range
● Excellent High-bandwidth Path Dynamic Characteristics (at 2.5 GHz) – Crosstalk = –35 dB – Isolation = –23 dB – Insertion Loss = –1.1 dB – Return Loss = –11 dB
● Small 3.5 mm × 9 mm, 42-Pin WQFN Package (RUA)
● Active Mode Power = 8 mW USB HOST HD3SS6126 3
DESCRIPTION

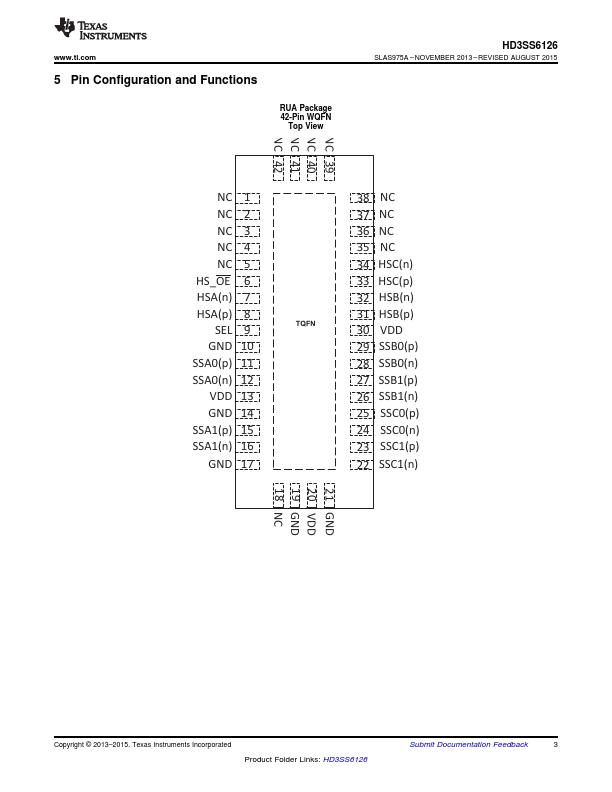

Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) HD3SS6126 WQFN (42) 9.00 mm × 3.50 mm (1) For all available packages, see the orderable addendum at the end of the data sheet.
