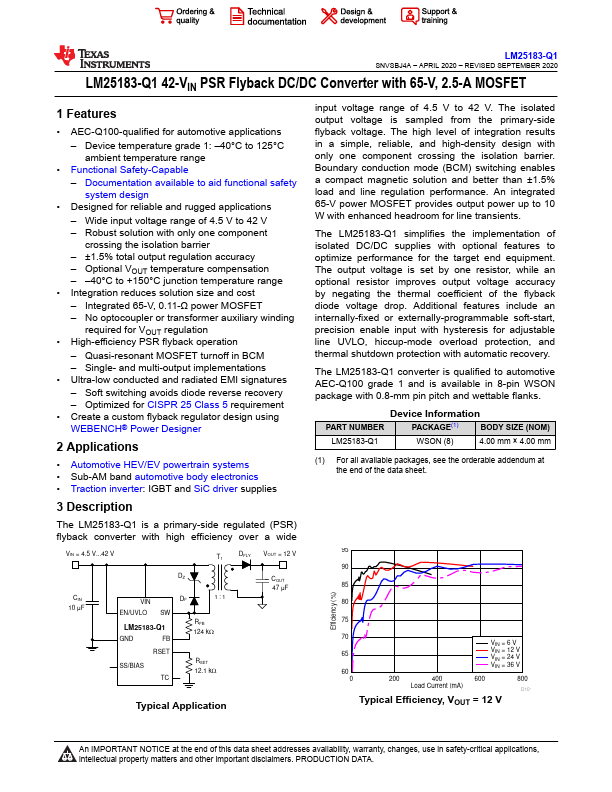

LM25183-Q1
Overview
- AEC-Q100-qualified for automotive applications - Device temperature grade 1: -40°C to 125°C ambient temperature range
- Functional Safety-Capable - Documentation available to aid functional safety system design
- Designed for reliable and rugged applications - Wide input voltage range of 4.5 V to 42 V - Robust solution with only one component crossing the isolation barrier - ±1.5% total output regulation accuracy - Optional VOUT temperature compensation - -40°C to +150°C junction temperature range
- Integration reduces solution size and cost - Integrated 65-V, 0.11-Ω power MOSFET - No optocoupler or transformer auxiliary winding required for VOUT regulation
- High-efficiency PSR flyback operation - Quasi-resonant MOSFET turnoff in BCM - Single- and multi-output implementations
- Ultra-low conducted and radiated EMI signatures - Soft switching avoids diode reverse recovery - Optimized for CISPR 25 Class 5 requirement
- Create a custom flyback regulator design using WEBENCH® Power Designer
