Texas Instruments LM3724
The LM3724 has an active-low open-drain RESET output. With a low supply current of only 6µA, the LM3722/LM3723/LM3724 are ideal for use in portable equipment. The LM3722/LM3723/LM3724 are available in the 5-pin SOT-23 package.| Part No. | LM3724 |
|---|---|
| Datasheet | LM3724 Download |
| Manufacturer |  Texas Instruments |
| Description | 5-Pin Microprocessor Reset Circuit |
| Buy | Stock & Price |
FEATURES

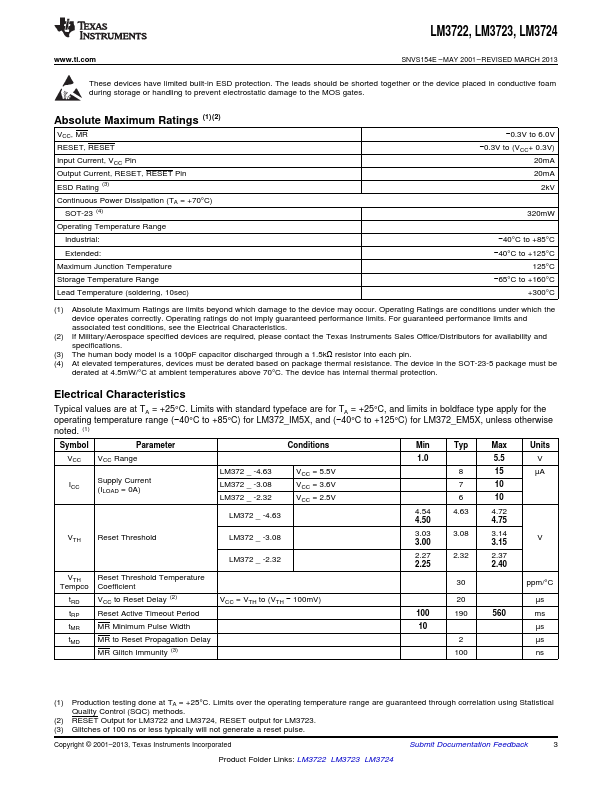

1●2 Precise Monitoring of 2.5V, 3.3V, and 5V Supply Voltages
● Fully Specified Over Temperature – Industrial: −40°C to +85°C – Extended: −40°C to +125°C
● 100 ms Minimum Power-On Reset pulse Width, 190 ms Typical: – Active-Low RESET Output (LM3722) – Active-High RESET Output (LM3723) – Active-Low RESET Open Drain Output (LM3724)
● Guaranteed RESET Output Valid for VCC ≥ 1V
● Low Supply Current, 6µA Typical
● Power Supply Transient Immunity
● Compatible with MAX811/812
APPLICATIONS
APPLICATIONS
● Microprocessor Systems● Computers
● Controllers
● Intelligent Instruments
● Portable/Battery-Powered Equipment

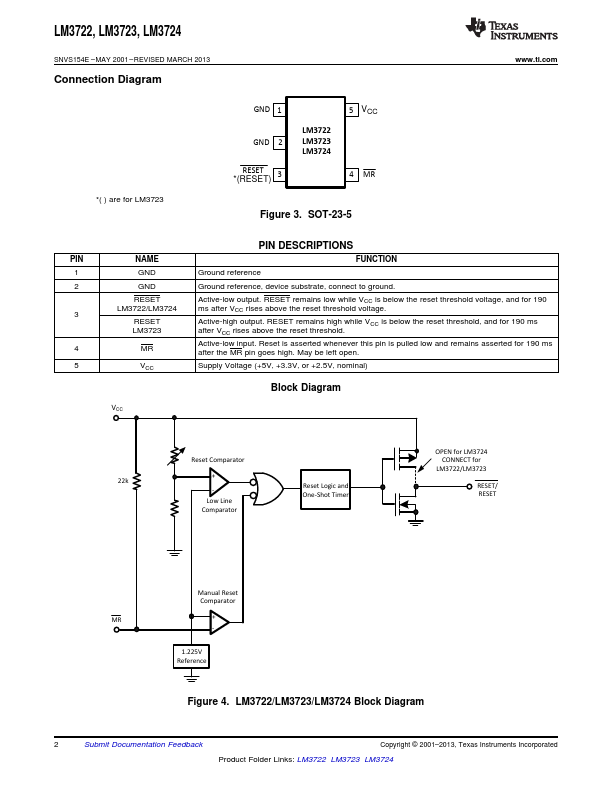

DESCRIPTION
The LM3722/LM3723/LM3724 microprocessor supervisory circuits monitor the power supplies in microprocessor and digital systems. They provide a reset to the microprocessor during power-up, powerdown, brown-out conditions, and manual reset. The LM3722/LM3723/LM3724 asserts a reset signal whenever the supply decreases below the factoryprogrammed reset threshold. Reset will be asserted for at least 100ms even after VCC rises above the reset threshold.
