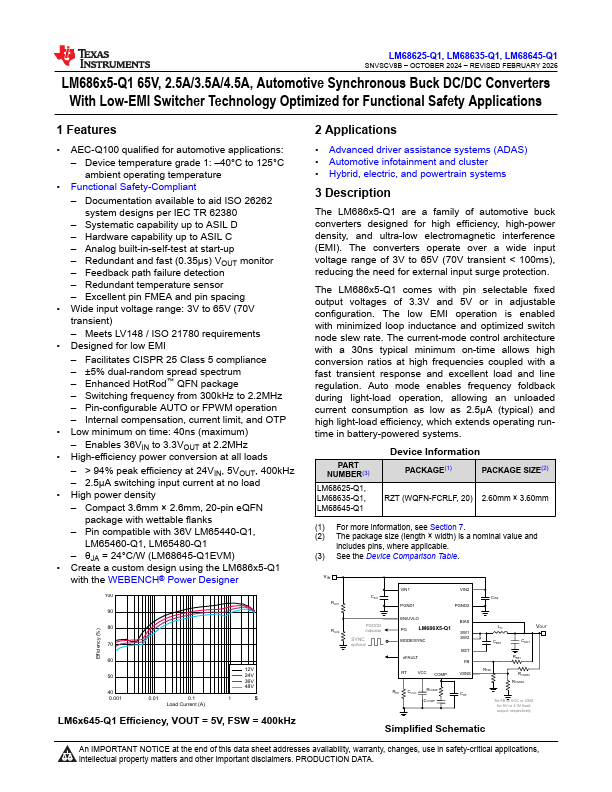

LM68625-Q1
Features
- AEC-Q100 qualified for automotive applications:
- Device temperature grade 1:
- 40°C to 125°C ambient operating temperature
- Functional Safety-pliant
- Documentation available to aid ISO 26262 system designs per IEC TR 62380
- Systematic capability up to ASIL D
- Hardware capability up to ASIL C
- Analog built-in-self-test at start-up
- Redundant and fast (0.35μs) VOUT monitor
- Feedback path failure detection
- Redundant temperature sensor
- Excellent pin FMEA and pin spacing
- Wide input voltage range: 3V to 65V (70V transient)
- Meets LV148 / ISO 21780 requirements
- Designed for low EMI
- Facilitates CISPR 25 Class 5 pliance
- ±5% dual-random spread spectrum
- Enhanced Hot Rod™ QFN package
- Switching frequency from 300k Hz to 2.2MHz
- Pin-configurable AUTO or FPWM operation
- Internal pensation, current limit, and OTP
- Low minimum on time: 40ns (maximum)
- Enables 36VIN to 3.3VOUT at 2.2MHz
- High-efficiency power conversion at all loads
- > 94% peak efficiency at...
