LMS33460 - 3-V Undervoltage Detector

Description

The LMS33460 device is an undervoltage detector with a 3‑V threshold and extremely low power consumption.

The LMS33460 is specifically designed to accurately monitor power supplies.

It is especially suited to battery-powered systems where low quiescent current and small size are required.

Features

  • 1 Ultra-Low Power.
  • 3-V Detection.
  • Input Voltage From 0.8 V to 7 V.
  • Open-Drain Output.
  • Ultra-Small 5-Pin SC70 Package.
  • Extended Temperature Range (.
  • 40°C to 85°C).
  • Ultra-Low Quiescent Current (1 µA Typical) 2.

📥 Download Datasheet

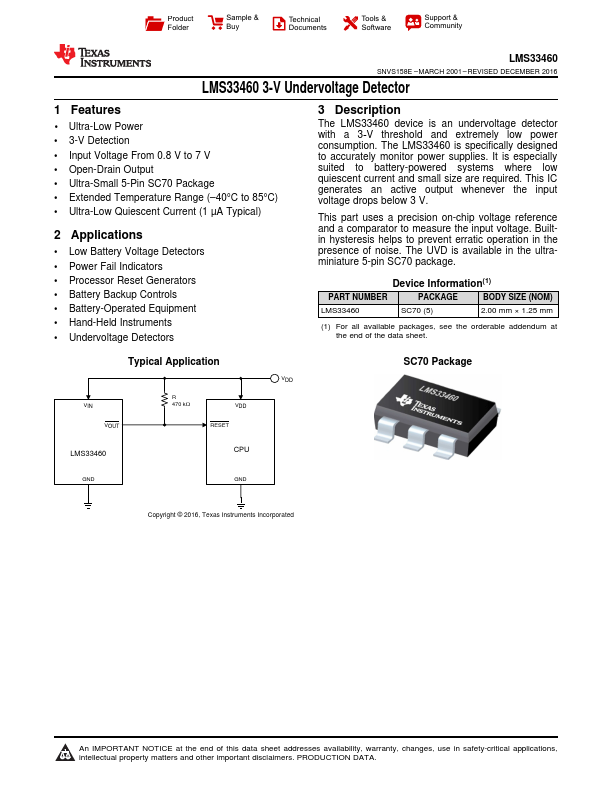

Datasheet preview – LMS33460

Datasheet Details

Part number LMS33460
Manufacturer Texas Instruments
File Size 598.14 KB
Description 3-V Undervoltage Detector
Datasheet download datasheet LMS33460 Datasheet

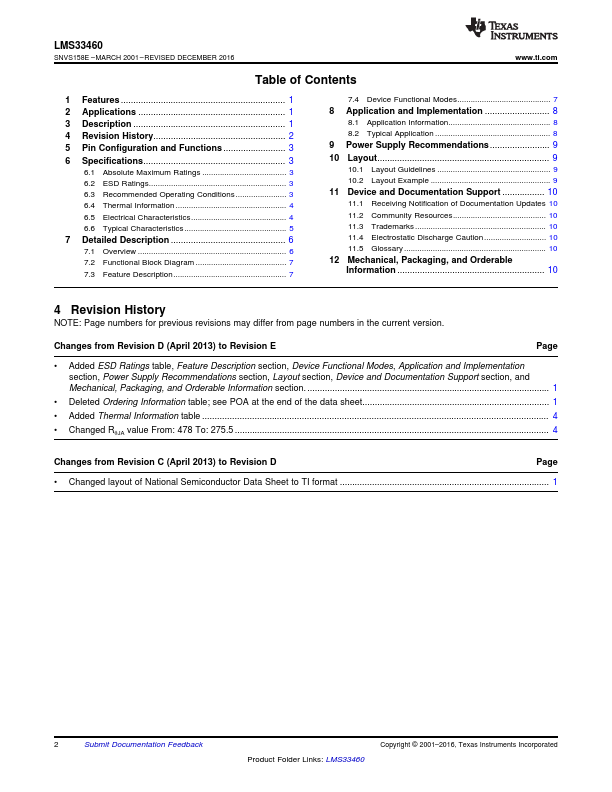

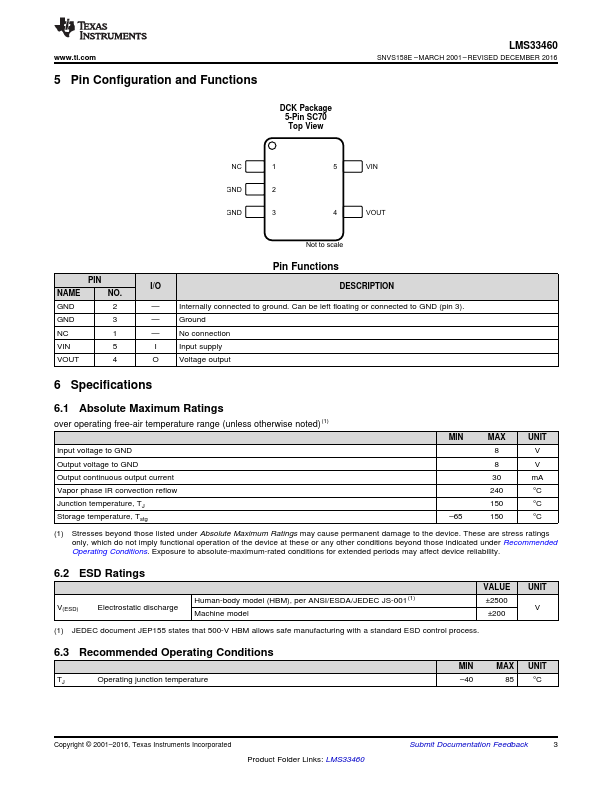

Additional preview pages of the LMS33460 datasheet.

📁 Similar Datasheet

Other Datasheets by Texas Instruments
  • LMS3635-Q1 - 400-kHz Step-Down Converter
  • LMS3655 - 400-kHz DC-DC Step-Down Converter
  • LMS3655-Q1 - 400-kHz Step-Down Converter
  • LMS1485 - 5V Low Power RS-485 Differential Bus Transceiver
  • LMS1585A - 5A and 3A Low Dropout Fast Response Regulators
  • LMS1587 - 5A and 3A Low Dropout Fast Response Regulators
  • LMS4684 - Dual SPDT Analog Switch
  • LMS485E - Low Power RS-485 / RS-422 Differential Bus Transceiver

Full PDF Text Transcription

Click to expand full text
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMS33460 SNVS158E – MARCH 2001 – REVISED DECEMBER 2016 LMS33460 3-V Undervoltage Detector 1 Features •1 Ultra-Low Power • 3-V Detection • Input Voltage From 0.8 V to 7 V • Open-Drain Output • Ultra-Small 5-Pin SC70 Package • Extended Temperature Range (–40°C to 85°C) • Ultra-Low Quiescent Current (1 µA Typical) 2 Applications • Low Battery Voltage Detectors • Power Fail Indicators • Processor Reset Generators • Battery Backup Controls • Battery-Operated Equipment • Hand-Held Instruments • Undervoltage Detectors 3 Description The LMS33460 device is an undervoltage detector with a 3‑V threshold and extremely low power consumption.
