LMS5214 - 80mA Low Dropout Voltage Regulator

Description

The LMS5214 is a µCap, low dropout voltage regulator with very low quiescent current, 110µA typical, at 80mA load.

It also has very low dropout voltage, typically 2mV at light load and 300mV at 80mA.

Features

  • 1.
  • 2 (Typical Unless Noted).
  • Space Saving SOT Package.
  • Low Quiescent Current: 70μA.
  • Low Dropout Voltage: 2mV.
  • Stability With Low-ESR Ceramic Capacitors.
  • Auto Discharge.
  • Fast Turn-On.
  • Low Temperature Coefficient.
  • Current and Thermal Limiting.
  • Zero Current in Shutdown Mode.
  • Pin-to-Pin Compatible With LMS5213.

📥 Download Datasheet

📁 Similar Datasheet

  • LMS5214 - 80mA / Low Dropout Voltage Regulator (National Semiconductor)
  • LMS5213 - 80mA / uCap / Low Dropout Voltage Regulator (National Semiconductor)
  • LMS5258 - 150mA Low Dropout Voltage Regulator (National Semiconductor)
  • LMS501KF03 - LCD (Samsung)
  • LMS0192A - LCD Module (Shenzhen)
  • LMS0192A-2 - LCD Module (Shenzhen)
  • LMS0192B - LCD Module (Shenzhen)
  • LMS12 - 12-bit Cascadable Multiplier (LOGIC Devices Incorporated)
  • LMS12 - Low Profile Surface Mount Schottky Bridge Rectifiers (GOOD-ARK)
  • LMS12JC35 - 12-bit Cascadable Multiplier (LOGIC Devices Incorporated)
Other Datasheets by Texas Instruments
  • LMS1485 - 5V Low Power RS-485 Differential Bus Transceiver
  • LMS1585A - 5A and 3A Low Dropout Fast Response Regulators
  • LMS1587 - 5A and 3A Low Dropout Fast Response Regulators
  • LMS33460 - 3-V Undervoltage Detector
  • LMS3635-Q1 - 400-kHz Step-Down Converter
  • LMS3655 - 400-kHz DC-DC Step-Down Converter
  • LMS3655-Q1 - 400-kHz Step-Down Converter
  • LMS4684 - Dual SPDT Analog Switch

Full PDF Text Transcription

Click to expand full text

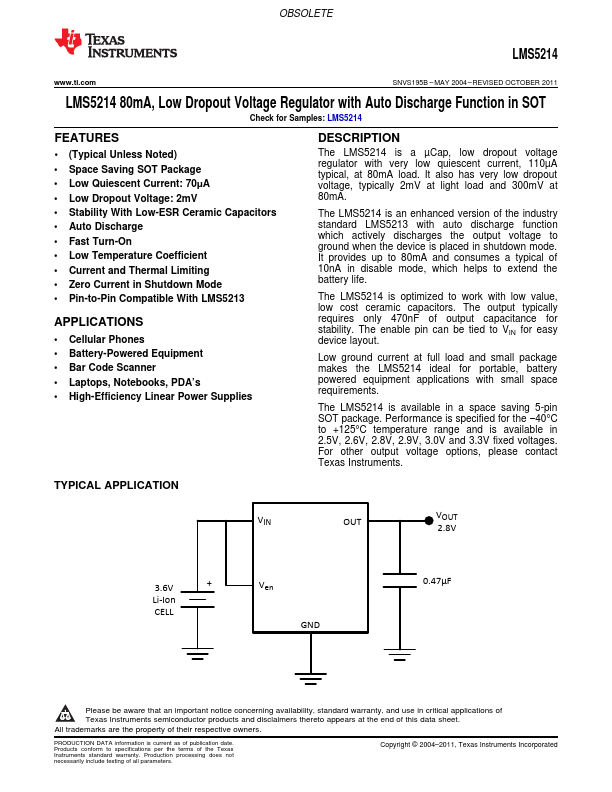

OBSOLETE LMS5214 www.ti.com SNVS195B – MAY 2004 – REVISED OCTOBER 2011 LMS5214 80mA, Low Dropout Voltage Regulator with Auto Discharge Function in SOT Check for Samples: LMS5214 FEATURES 1 •2 (Typical Unless Noted) • Space Saving SOT Package • Low Quiescent Current: 70μA • Low Dropout Voltage: 2mV • Stability With Low-ESR Ceramic Capacitors • Auto Discharge • Fast Turn-On • Low Temperature Coefficient • Current and Thermal Limiting • Zero Current in Shutdown Mode • Pin-to-Pin Compatible With LMS5213 APPLICATIONS • Cellular Phones • Battery-Powered Equipment • Bar Code Scanner • Laptops, Notebooks, PDA’s • High-Efficiency Linear Power Supplies DESCRIPTION The LMS5214 is a µCap, low dropout voltage regulator with very low quiescent current, 110µA typical, at 80mA load.
