LMS75LBC176 - Differential Bus Transceivers

Description

The LMS75LBC176 is a differential bus/line transceiver designed for bidirectional data communication on multipoint bus transmission lines.

It is designed for balanced transmission lines.

It meets TIA/EIA RS485 and ISO 8482:1987(E).

Features

  • 1.
  • 23 Bidirectional transceiver.
  • Meet ANSI standard RS-485.
  • Low skew, 6ns.
  • Low supply current, 8mA (max).
  • Wide input and output voltage range.
  • High output drive capacity ±60mA.
  • Thermal shutdown protection.
  • Open circuit fail-safe for receiver.
  • Receiver input sensitivity ±200mV.
  • Receiver input hysteresis 10mV (min. ).
  • Single supply voltage operation, 5V.
  • Glitch free power-up and power-down op.

📥 Download Datasheet

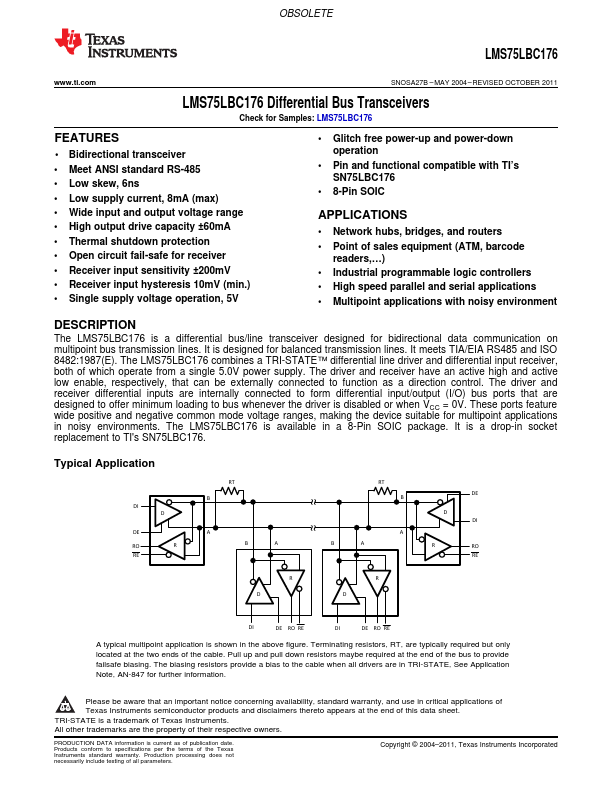

Datasheet preview – LMS75LBC176

Datasheet Details

Part number LMS75LBC176
Manufacturer Texas Instruments
File Size 219.45 KB
Description Differential Bus Transceivers
Datasheet download datasheet LMS75LBC176 Datasheet

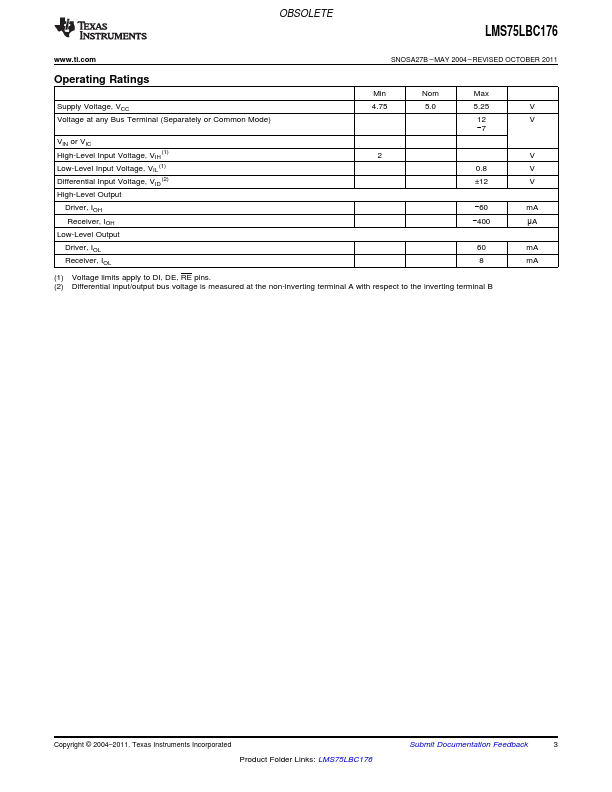

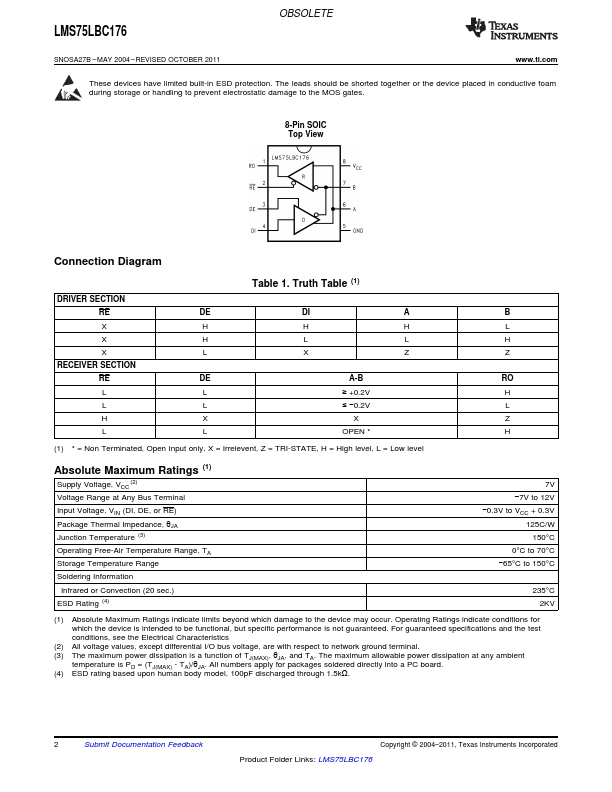

Additional preview pages of the LMS75LBC176 datasheet.

📁 Similar Datasheet

Other Datasheets by Texas Instruments
  • LMS75ALS176A - Differential Bus Transceivers
  • LMS1485 - 5V Low Power RS-485 Differential Bus Transceiver
  • LMS1585A - 5A and 3A Low Dropout Fast Response Regulators
  • LMS1587 - 5A and 3A Low Dropout Fast Response Regulators
  • LMS33460 - 3-V Undervoltage Detector
  • LMS3635-Q1 - 400-kHz Step-Down Converter
  • LMS3655 - 400-kHz DC-DC Step-Down Converter
  • LMS3655-Q1 - 400-kHz Step-Down Converter

Full PDF Text Transcription

Click to expand full text
OBSOLETE LMS75LBC176 www.ti.com SNOSA27B – MAY 2004 – REVISED OCTOBER 2011 LMS75LBC176 Differential Bus Transceivers Check for Samples: LMS75LBC176 FEATURES 1 •23 Bidirectional transceiver • Meet ANSI standard RS-485 • Low skew, 6ns • Low supply current, 8mA (max) • Wide input and output voltage range • High output drive capacity ±60mA • Thermal shutdown protection • Open circuit fail-safe for receiver • Receiver input sensitivity ±200mV • Receiver input hysteresis 10mV (min.
