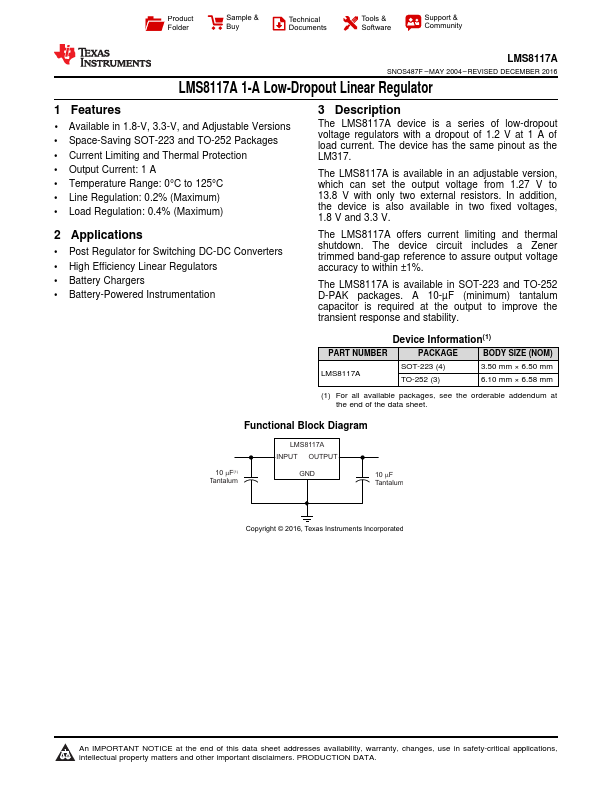

LMS8117A - 1-A Low-Dropout Linear Regulator

Description

The LMS8117A device is a series of low-dropout voltage regulators with a dropout of 1.2 V at 1 A of load current.

The device has the same pinout as the LM317.

The LMS8117A is available in an adjustable version, which can set the output voltage from 1.27 V to 13.8 V with only two external resistors.

Features

  • 1 Available in 1.8-V, 3.3-V, and Adjustable Versions.
  • Space-Saving SOT-223 and TO-252 Packages.
  • Current Limiting and Thermal Protection.
  • Output Current: 1 A.
  • Temperature Range: 0°C to 125°C.
  • Line Regulation: 0.2% (Maximum).
  • Load Regulation: 0.4% (Maximum) 2.

📥 Download Datasheet

📁 Similar Datasheet

  • LMS8117A - 1A Low-Dropout Linear Regulator (National Semiconductor)
  • LMS800JF01 - Display (Samsung)
  • LMS850KF01-001 - LCD Module (Samsung)
  • LMS0192A - LCD Module (Shenzhen)
  • LMS0192A-2 - LCD Module (Shenzhen)
  • LMS0192B - LCD Module (Shenzhen)
  • LMS12 - 12-bit Cascadable Multiplier (LOGIC Devices Incorporated)
  • LMS12 - Low Profile Surface Mount Schottky Bridge Rectifiers (GOOD-ARK)
  • LMS12JC35 - 12-bit Cascadable Multiplier (LOGIC Devices Incorporated)
  • LMS12JC40 - 12-bit Cascadable Multiplier (LOGIC Devices Incorporated)
Other Datasheets by Texas Instruments
  • LMS1485 - 5V Low Power RS-485 Differential Bus Transceiver
  • LMS1585A - 5A and 3A Low Dropout Fast Response Regulators
  • LMS1587 - 5A and 3A Low Dropout Fast Response Regulators
  • LMS33460 - 3-V Undervoltage Detector
  • LMS3635-Q1 - 400-kHz Step-Down Converter
  • LMS3655 - 400-kHz DC-DC Step-Down Converter
  • LMS3655-Q1 - 400-kHz Step-Down Converter
  • LMS4684 - Dual SPDT Analog Switch

Full PDF Text Transcription

Click to expand full text
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LMS8117A SNOS487F – MAY 2004 – REVISED DECEMBER 2016 LMS8117A 1-A Low-Dropout Linear Regulator 1 Features •1 Available in 1.8-V, 3.3-V, and Adjustable Versions • Space-Saving SOT-223 and TO-252 Packages • Current Limiting and Thermal Protection • Output Current: 1 A • Temperature Range: 0°C to 125°C • Line Regulation: 0.2% (Maximum) • Load Regulation: 0.4% (Maximum) 2 Applications • Post Regulator for Switching DC-DC Converters • High Efficiency Linear Regulators • Battery Chargers • Battery-Powered Instrumentation 3 Description The LMS8117A device is a series of low-dropout voltage regulators with a dropout of 1.2 V at 1 A of load current. The device has the same pinout as the LM317.
