MAX3232 - 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver

Product Overview

Texas Instruments

Datasheet Details

Part number	MAX3232
Manufacturer	Texas Instruments
File Size	1.68 MB
Description	3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver
Datasheet	MAX3232 Datasheet

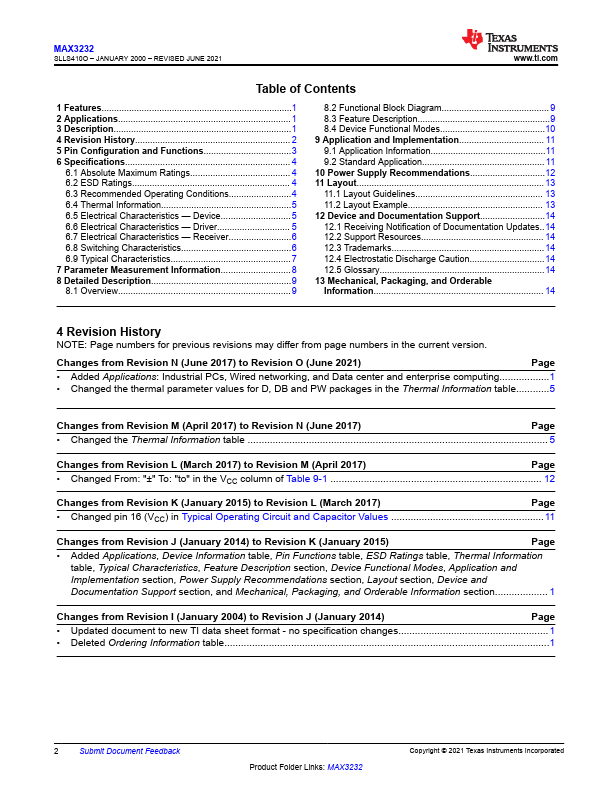

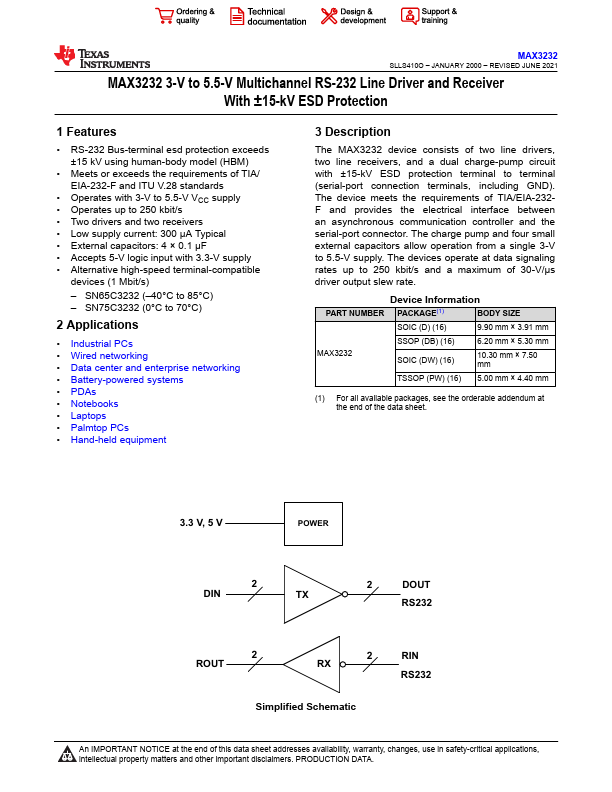

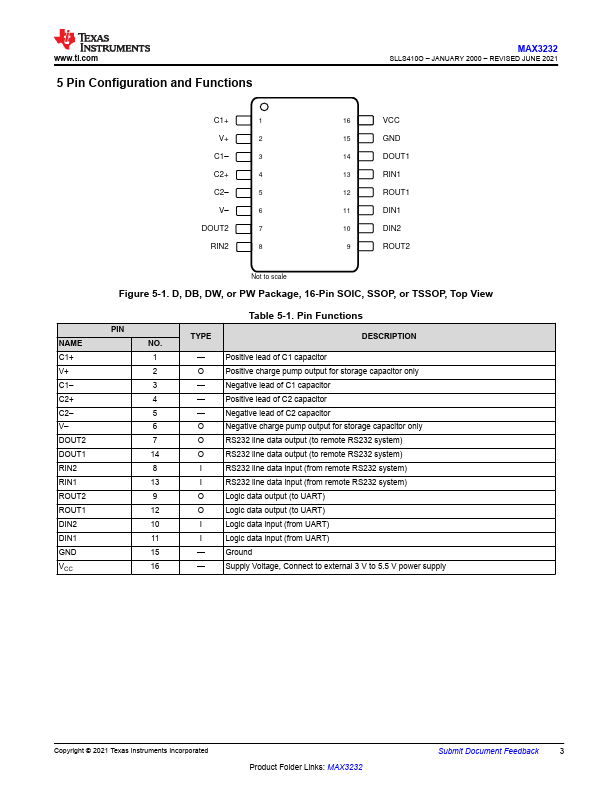

Additional preview pages of the MAX3232 datasheet.

Product details

Description

The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serialport connection terminals, including GND).

Features

1 RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM).
Meets or Exceeds the Requirements of TIA/EIA232-F and ITU V.28 Standards.
Operates With 3-V to 5.5-V VCC Supply.
Operates up to 250 kbit/s.
Two Drivers and Two Receivers.
Low Supply Current: 300 μA Typical.
External Capacitors: 4 × 0.1 μF.
Accepts 5-V Logic Input With 3.3-V Supply.
Alternative High-Speed Terminal-Compatible Devices (1.
