Texas Instruments MCP810
the MCP810 has an active-high RESET output. With a low supply current of only 15µA, the MCP809/810 are ideal for use in portable equipment. The MCP809/MCP810 are available in the 3-pin SOT23 package.| Part No. | MCP810 |
|---|---|
| Datasheet | MCP810 Download |
| Manufacturer |  Texas Instruments |
| Description | 3-Pin Microprocessor Reset Circuit |
| Buy | Stock & Price |

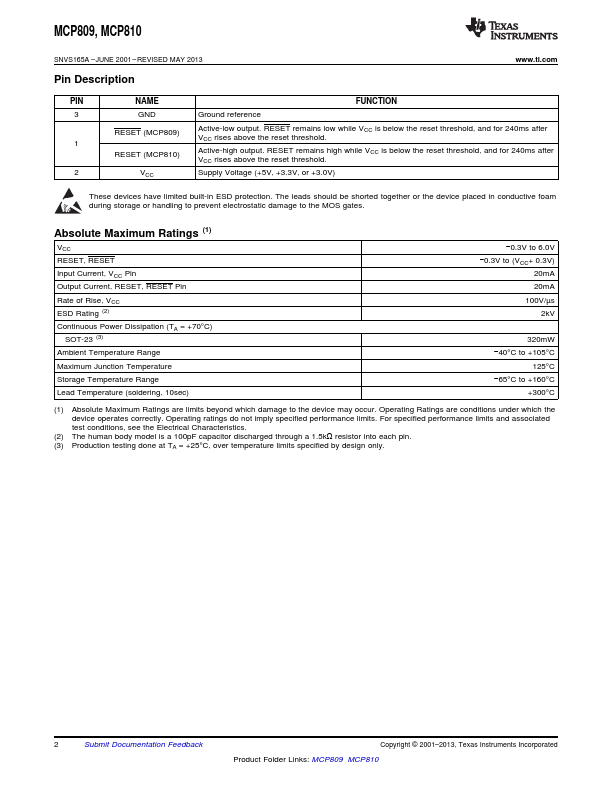

FEATURES
1●2 Precise Monitoring of 3V, 3.3V, and 5V Supply Voltages
● Fully specified over temperature
● 140ms min. Power-On Reset Pulse Width, 240ms Typical – Active-low RESET Output (MCP809) – Active-high RESET Output (MCP810)
● Specified RESET Output Valid for VCC≥1V
● Low Supply Current, 15µA typical
● Power supply transient immunity
APPLICATIONS
● Microprocessor Systems● Computers
● Controllers
● Intelligent Instruments
● Portable/Battery-Powered Equipment
● Automotive
DESCRIPTION
The MCP809/810 microprocessor supervisory circuits can be used to monitor the power supplies in microprocessor and digital systems. They provide a reset to the microprocessor during power-up, powerdown and brown-out conditions. The function of the MCP809/810 is to monitor the VCC supply voltage, and assert a reset signal whenever this voltage declines below the factory-programmed reset threshold. The reset signal remains asserted for 240ms after VCC rises above the threshold. The MCP809 has an active-low RESET output, while the MCP810 has an active-high RESET output.
