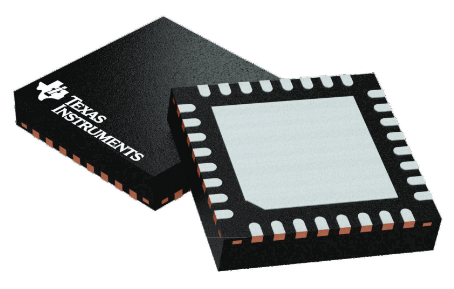

MSP430G2553 - MIXED SIGNAL MICROCONTROLLER

Description

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications.

Features

  • 1.
  • Low Supply-Voltage Range: 1.8 V to 3.6 V.
  • Ultra-Low Power Consumption.
  • Active Mode: 230 µA at 1 MHz, 2.2 V.
  • Standby Mode: 0.5 µA.
  • Off Mode (RAM Retention): 0.1 µA.
  • Five Power-Saving Modes.
  • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs.
  • 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time.
  • Basic Clock Module Configurations.
  • Internal Frequencies up to 16 MHz With Four Calibrated Frequency.

📥 Download Datasheet

Datasheet preview – MSP430G2553

Datasheet Details

Part number MSP430G2553
Manufacturer Texas Instruments
File Size 2.18 MB
Description MIXED SIGNAL MICROCONTROLLER
Datasheet download datasheet MSP430G2553 Datasheet
Additional preview pages of the MSP430G2553 datasheet.

📁 Similar Datasheet

  • MSP4000 - MSP for VoIP Gateways with Integrated Secure Router (PMC-Sierra)
  • MSP4403W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP4408G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4410G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4418G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4420G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4428G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4435W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP4440G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4448G - (MSP44x8G) Multistandard Sound Processor (Micronas)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
MSP430G2x53 MSP430G2x13 www.ti.com SLAS735J – APRIL 2011 – REVISED MAY 2013 MIXED SIGNAL MICROCONTROLLER FEATURES 1 • Low Supply-Voltage Range: 1.8 V to 3.6 V • Ultra-Low Power Consumption – Active Mode: 230 µA at 1 MHz, 2.2 V – Standby Mode: 0.5 µA – Off Mode (RAM Retention): 0.1 µA • Five Power-Saving Modes • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs • 16-Bit RISC Architecture, 62.
