Texas Instruments NE5532
The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent dc and ac characteristics. These devices feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, inputprotection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation.| Part No. | NE5532 |
|---|---|
| Datasheet | NE5532 Download |
| Manufacturer |  Texas Instruments |
| Description | Dual Low-Noise Operational Amplifiers |
| Buy | Stock & Price |

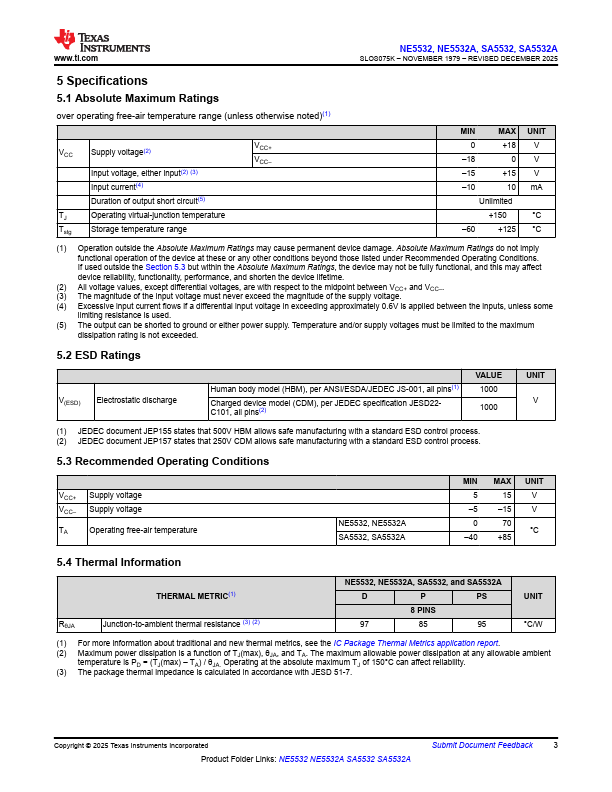

FEATURES
● Equivalent Input Noise Voltage: 5nV/√ Hz Typ at 1kHz● Unity-Gain Bandwidth: 12MHz Typ
● Common-Mode Rejection Ratio: 100dB Typ
● High DC Voltage Gain: 100V/mV Typ
● High Slew Rate: 5V/μs Typ 2
APPLICATIONS
● AV Receivers● Embedded PCs
● Net books
● Video Broadcasting and Infrastructure: Scalable Platforms
● DVD Recorders and Players
● Multichannel Video Trans coders
● Pro Audio Mixers 3
DESCRIPTION

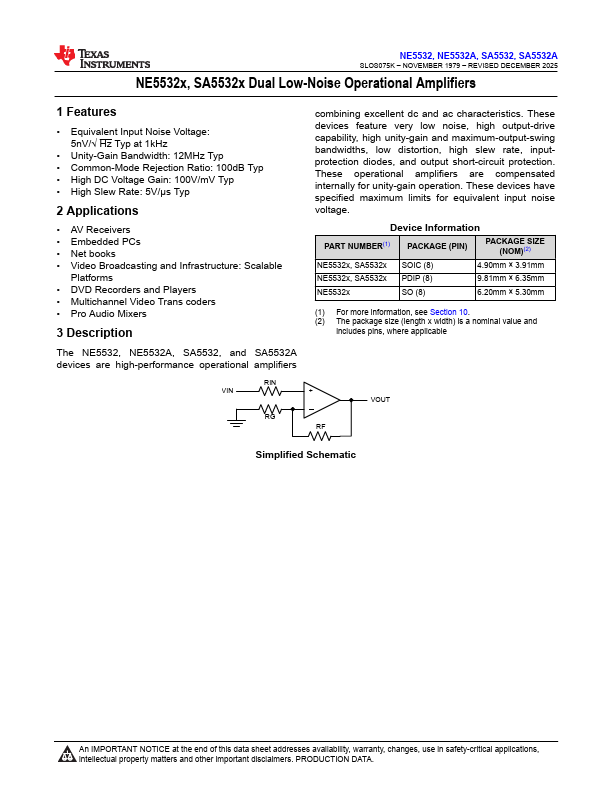

These devices have specified maximum limits for equivalent input noise voltage. Device Information PART NUMBER(1) PACKAGE (PIN) PACKAGE SIZE (NOM)(2) NE5532x, SA5532x SOIC (8) 4.90mm × 3.91mm NE5532x, SA5532x PDIP (8) 9.81mm × 6.35mm NE5532x SO (8) 6.20mm × 5.30mm (1) For more information, see Section 10. (2) The package size (length x width) is a nominal value and includes pins, where applicable RIN VIN + VOUT RG RF Simplified Schematic An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers.
