NE5532A Datasheet Dual Low-noise Operational Amplifiers

Manufacturer: Texas Instruments

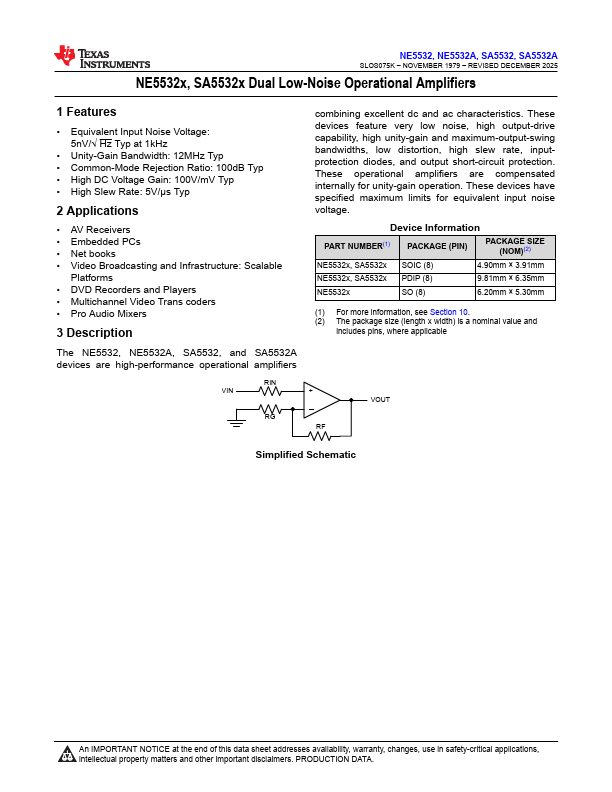

Overview: Product Folder Sample & Buy Technical Documents Tools & Software Support & Community NE5532, NE5532A, SA5532, SA5532A SLOS075J – NOVEMBER 1979 – REVISED JANUARY 2015 NE5532x, SA5532x Dual Low-Noise Operational.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	NE5532A
Manufacturer	Texas Instruments
File Size	1.03 MB
Description	Dual Low-Noise Operational Amplifiers
Datasheet	NE5532A NE5532 Datasheet (PDF)

General Description

The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics.

They

Key Features

1 Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz.
Unity-Gain Bandwidth: 10 MHz Typ.
Common-Mode Rejection Ratio: 100 dB Typ.
High DC Voltage Gain: 100 V/mV Typ.
Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω.
High Slew Rate: 9 V/μs Typ 2.
