NE555P Overview
Key Specifications
Package: PDIP
Mount Type: Through Hole
Pins: 8
Operating Voltage: 5 V

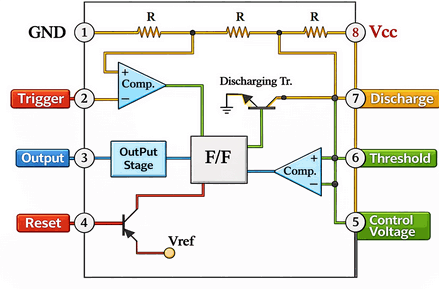

Representative NE555P image (package may vary by manufacturer)
Description
These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network.
Key Features
- 1 Timing From Microseconds to Hours
- Astable or Monostable Operation
- Adjustable Duty Cycle
- TTL-Compatible Output Can Sink or Source Up to 200 mA
