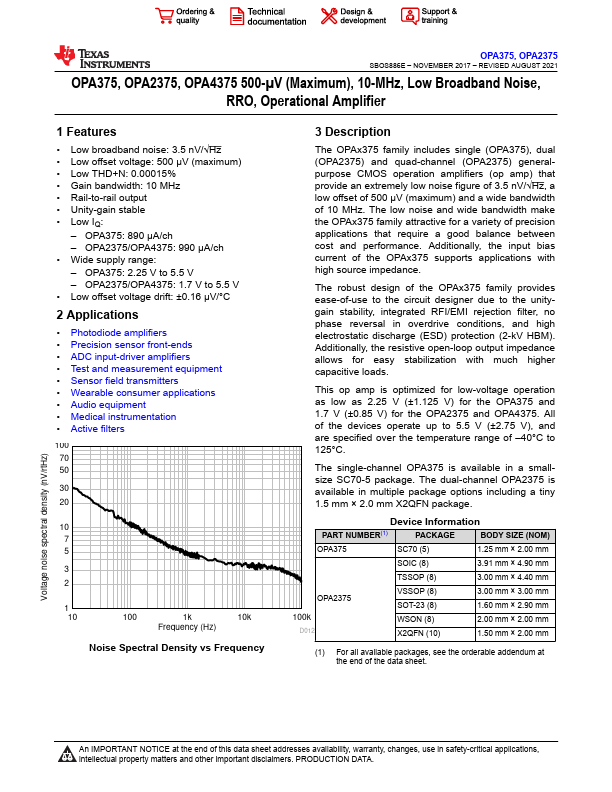

Texas Instruments OPA375
the OPA375 and 1.7 V (±0.85 V) for the OPA2375 and OPA4375. The single-channel OPA375 is available in a smallsize SC70-5 package. The dual-channel OPA2375 is available in multiple package options including a tiny 1.5 mm × 2.0 mm X2QFN package.| Part No. | OPA375 |
|---|---|
| Datasheet | OPA375 Download |
| Manufacturer |  Texas Instruments |
| Description | 10-MHz Low Broadband Noise RRO Operational Amplifier |
| Buy | Stock & Price |
FEATURES
● Low broadband noise: 3.5 nV/√Hz● Low offset voltage: 500 µV (maximum)
● Low THD+N: 0.00015%
● Gain bandwidth: 10 MHz
● Rail-to-rail output
● Unity-gain stable
● Low IQ: – OPA375: 890 µA/ch – OPA2375/OPA4375: 990 µA/ch
● Wide supply range: – OPA375: 2.25 V to 5.5 V – OPA2375/OPA4375: 1.7 V to 5.5 V
● Low offset voltage drift: ±0.16 µV/°C 2
APPLICATIONS
● Photodiode amplifiers● Precision sensor front-ends
● ADC input-driver amplifiers
● Test and measurement equipment
● Sensor field transmitters
● Wearable consumer applications
● Audio equipment
● Medical instrumentation
● Active filters 100 70 50 30 20 10 7 5 3 2 1 10 100 1k 10k Frequency (Hz) Noise Spectral Density vs Frequency 3
DESCRIPTION
The OPAx375 family includes single (OPA375), dual (OPA2375) and quad-channel (OPA2375) generalpurpose CMOS operation amplifiers (op amp) that provide an extremely low noise figure of 3.5 nV/√Hz, a low offset of 500 µV (maximum) and a wide bandwidth of 10 MHz. The low noise and wide bandwidth make the OPAx375 family attractive for a variety of precision applications that require a good balance between cost and performance.
