REF3112-Q1 - SOT-23 Series Voltage Reference

General Description

The REF31xx-Q1 is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT-23 package.

The REF31xx-Q1 small size and low power consumption (100 μA typical) make it ideal for portable and battery-powered applications.

Key Features

  • 1 AEC-Q100 Qualified With the Following Results:.
  • Device TA Range:.
  • 40°C to 125°C.
  • Device HBM ESD Classification Level H1C.
  • Device CDM ESD Classification Level C4A.
  • High Accuracy: 0.2% Maximum.
  • Excellent Specified Drift Performance:.
  • 20 ppm/°C (Maximum) from.
  • 40°C to +125°C.
  • High Output Current: ±10 mA.
  • Low Dropout: 5 mV.
  • Low IQ: 115 µA Maximum.
  • Low Noise: 17 µVp-p/V.
  • No Ou.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
REF3112 15ppm/C Max/ 100UA/ SOT23-3 SERIES VOLTAGE REFERENCE Burr-Brown Corporation
REF3120 15ppm/C Max/ 100UA/ SOT23-3 SERIES VOLTAGE REFERENCE Burr-Brown Corporation
REF3125 15ppm/C Max/ 100UA/ SOT23-3 SERIES VOLTAGE REFERENCE Burr-Brown Corporation
REF3130 15ppm/C Max/ 100UA/ SOT23-3 SERIES VOLTAGE REFERENCE Burr-Brown Corporation
REF3133 15ppm/C Max/ 100UA/ SOT23-3 SERIES VOLTAGE REFERENCE Burr-Brown Corporation

Other Datasheets by Texas Instruments

Part Number Description
REF3112 SOT-23 Series Voltage Reference
REF3120 SOT-23 Series Voltage Reference
REF3120-Q1 SOT-23 Series Voltage Reference
REF3125 SOT-23 Series Voltage Reference
REF3125-Q1 SOT-23 Series Voltage Reference

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

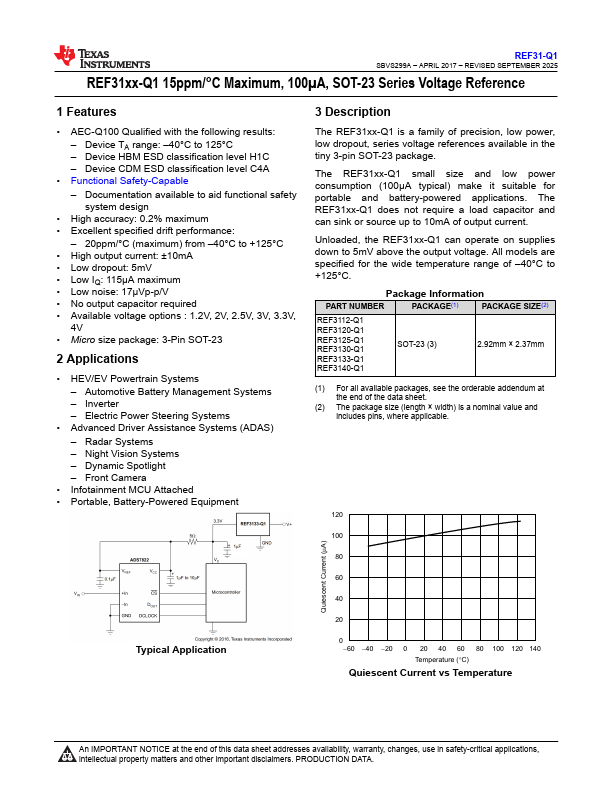

Product Folder Order Now Technical Documents Tools & Software Support & Community REF3112-Q1, REF3120-Q1, REF3125-Q1 REF3130-Q1, REF3133-Q1, REF3140-Q1 SBVS299 – APRIL 2017 REF31xx-Q1 15 ppm/°C Maximum, 100-µA, SOT-23 Series Voltage Reference 1 Features •1 AEC-Q100 Qualified With the Following Results: – Device TA Range: –40°C to 125°C – Device HBM ESD Classification Level H1C – Device CDM ESD Classification Level C4A • High Accuracy: 0.2% Maximum • Excellent Specified Drift Performance: – 20 ppm/°C (Maximum) from –40°C to +125°C • High Output Current: ±10 mA • Low Dropout: 5 mV • Low IQ: 115 µA Maximum • Low Noise: 17 µVp-p/V • No Output Capacitor Required • Available Voltage Options : 1.2 V, 2 V, 2.5 V, 3 V, 3.
