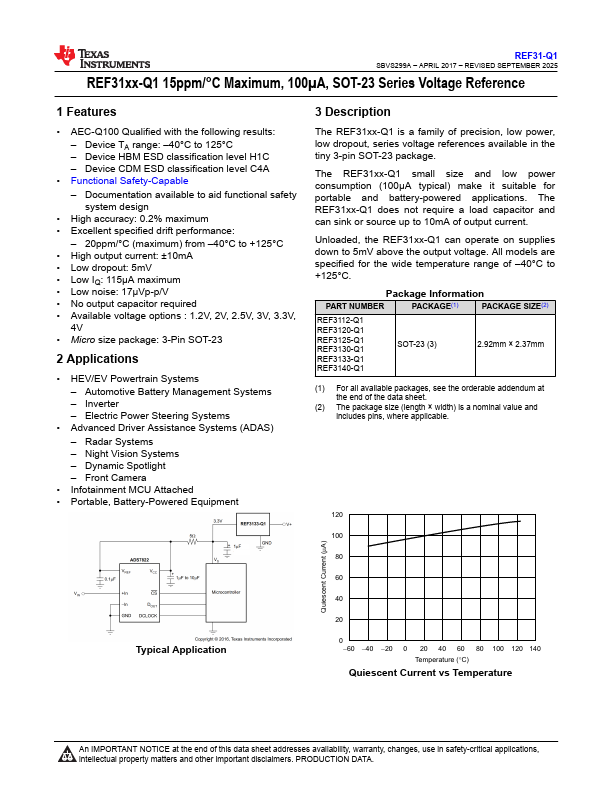

REF3120-Q1
Description
The REF31xx-Q1 is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT-23 package.
Key Features
- Functional Safety-Capable – Documentation available to aid functional safety system design
- High accuracy: 0.2% maximum
- Excellent specified drift performance
- High output current: ±10mA
- Low dropout: 5mV
- Low IQ: 115µA maximum
- Low noise: 17µVp-p/V
- No output capacitor required
- Micro size package: 3-Pin SOT-23
Applications
- HEV/EV Powertrain Systems – Automotive Battery Management Systems – Inverter – Electric Power Steering Systems
