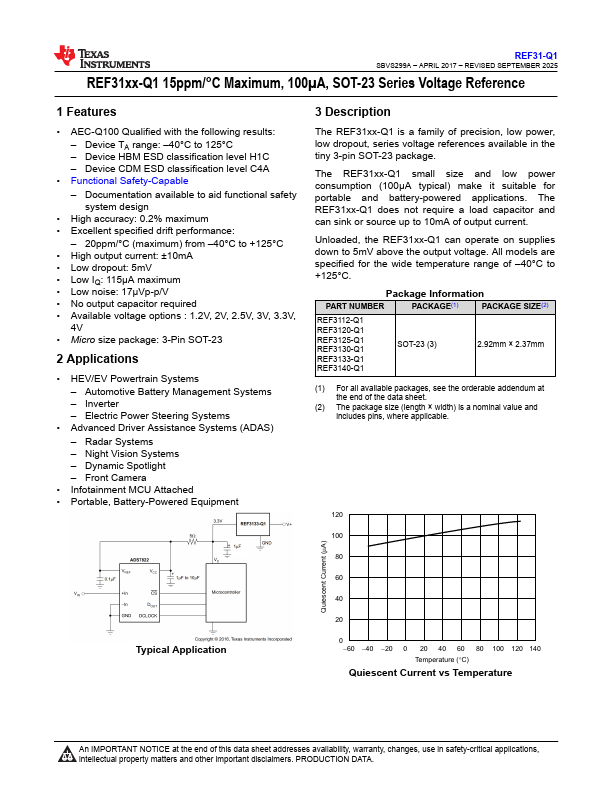

Texas Instruments REF3130-Q1
The REF31xx-Q1 is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT-23 package. The REF31xx-Q1 small size and low power consumption (100μA typical) make it suitable for portable and battery-powered applications. The REF31xx-Q1 does not require a load capacitor and can sink or source up to 10mA of output current.| Part No. | REF3130-Q1 |
|---|---|
| Datasheet | REF3130-Q1 Download |
| Manufacturer |  Texas Instruments |
| Description | SOT-23 Series Voltage Reference |
| Buy | Stock & Price |
FEATURES
● AEC-Q100 Qualified with the following results: – Device TA range: –40°C to 125°C – Device HBM ESD classification level H1C – Device CDM ESD classification level C4A● Functional Safety-Capable – Documentation available to aid functional safety system design
● High accuracy: 0.2% maximum
● Excellent specified drift performance: – 20ppm/°C (maximum) from –40°C to +125°C
● High output current: ±10mA
● Low dropout: 5mV
● Low IQ: 115µA maximum
● Low noise: 17µVp-p/V
● No output capacitor required
● Available voltage options : 1.2V, 2V, 2.5V, 3V, 3.3V, 4V
● Micro size package: 3-Pin SOT-23 2
APPLICATIONS
● HEV/EV Powertrain Systems – Automotive Battery Management Systems – Inverter – Electric Power Steering Systems● Advanced Driver Assistance Systems (ADAS) – Radar Systems – Night Vision Systems – Dynamic Spotlight – Front Camera
● Infotainment MCU Attached
● Portable, Battery-Powered Equipment Typical Application 3
DESCRIPTION
Unloaded, the REF31xx-Q1 can operate on supplies down to 5mV above the output voltage.
