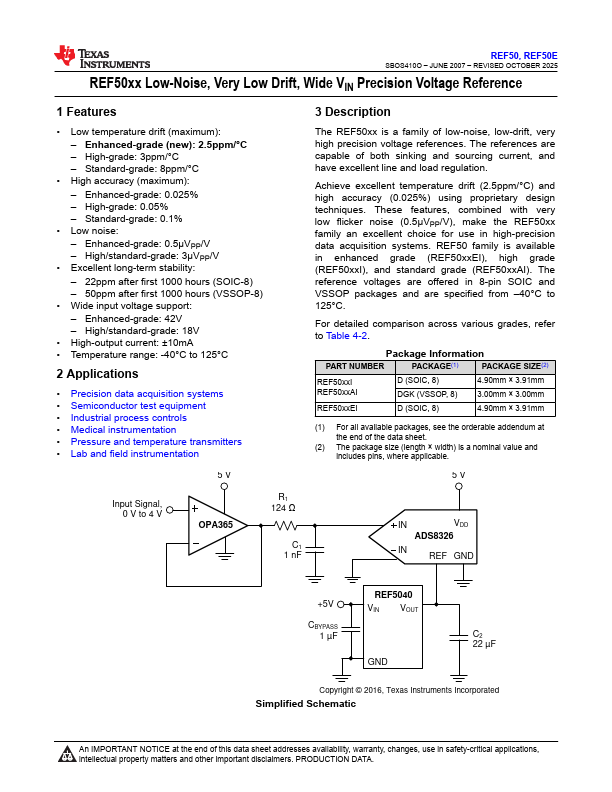

REF5050 Description
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. The references are capable of both sinking and sourcing current, and have excellent line and load regulation. Achieve excellent temperature drift (2.5ppm/°C) and high accuracy (0.025%) using proprietary design techniques.
REF5050 Key Features
- Low temperature drift (maximum)
- Enhanced-grade (new): 2.5ppm/°C
- High-grade: 3ppm/°C
- Standard-grade: 8ppm/°C
- High accuracy (maximum)
- Enhanced-grade: 0.025%
- High-grade: 0.05%
- Standard-grade: 0.1%
- Low noise
- Enhanced-grade: 0.5μVPP/V
