SA5532A - Dual Low-Noise Operational Amplifiers

Download the SA5532A datasheet PDF. This datasheet also covers the SA5532 variant, as both devices belong to the same dual low-noise operational amplifiers family and are provided as variant models within a single manufacturer datasheet.

General Description

The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics.

Key Features

  • 1 Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz.
  • Unity-Gain Bandwidth: 10 MHz Typ.
  • Common-Mode Rejection Ratio: 100 dB Typ.
  • High DC Voltage Gain: 100 V/mV Typ.
  • Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω.
  • High Slew Rate: 9 V/μs Typ 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SA5532-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SA5532A Internally-compensated dual low noise operational amplifier Philips
SA5532 Internally-compensated dual low noise operational amplifier Philips
SA5532 Internally Compensated Dual Low Noise Operational Amplifier ON Semiconductor
SA5534 Dual and single low noise op amp Philips
SA5534 Single Low Noise Operational Amplifier ON Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
SA5532 Dual Low-Noise Operational Amplifiers
SA5534 Low-Noise Operational Amplifiers
SA5534A Low-Noise Operational Amplifiers
SA555 Precision Timer
SA555D Precision Timer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

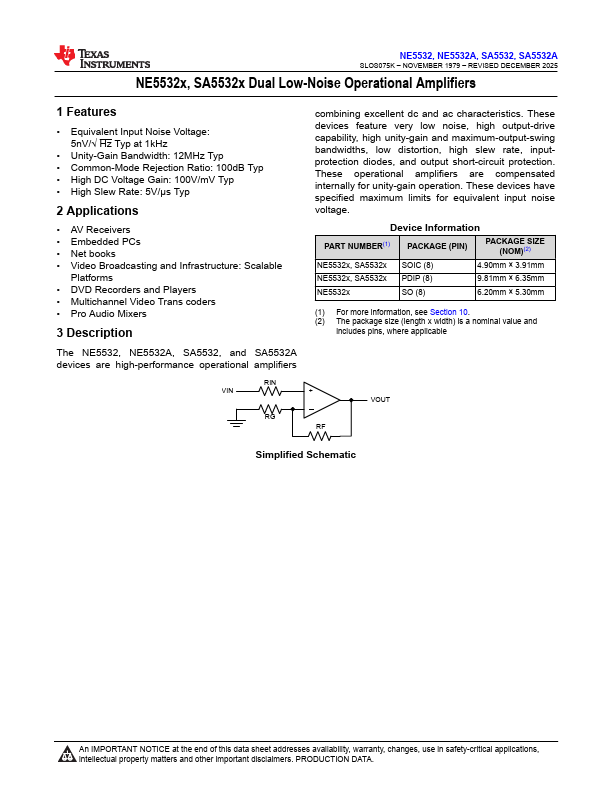

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community NE5532, NE5532A, SA5532, SA5532A SLOS075J – NOVEMBER 1979 – REVISED JANUARY 2015 NE5532x, SA5532x Dual Low-Noise Operational Amplifiers 1 Features •1 Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz • Unity-Gain Bandwidth: 10 MHz Typ • Common-Mode Rejection Ratio: 100 dB Typ • High DC Voltage Gain: 100 V/mV Typ • Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω • High Slew Rate: 9 V/μs Typ 2 Applications • AV Receivers • Embedded PCs • Netbooks • Video Broadcasting and Infrastructure: Scalable Platforms • DVD Recorders and Players • Multichannel Video Transcoders • Pro Audio Mixers 3 Description The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance ope
