Texas Instruments SM320F28335-EP
The SM320F28335 is a highly integrated, high-performance solution for demanding control applications.| Part No. | SM320F28335-EP |
|---|---|

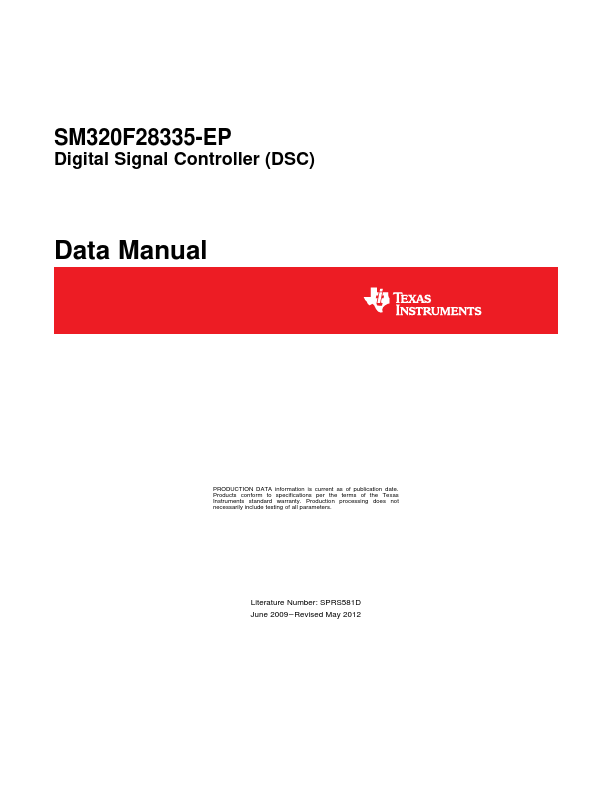

| Datasheet | SM320F28335-EP Download |
| Manufacturer |  Texas Instruments |
| Description | Digital Signal Controller |
| Buy | Stock & Price |
FEATURES
●12 High-Performance Static CMOS Technology – Up to 150 MHz (6.67-ns Cycle Time) – 1.9-V/1.8-V Core, 3.3-V I/O Design● High-Performance 32-Bit CPU – IEEE-754 Single-Precision Floating-Point Unit (FPU) ) – 16 x 16 and 32 x 32 MAC Operations – 16 x 16 Dual MAC – Harvard Bus Architecture – Fast Interrupt Response and Processing – Unified Memory Programming Model – Code-Efficient (in C/C++ and Assembly)
● Six Channel DMA Controller (for ADC, McBSP, ePWM, XINTF, and SARAM)
● 16-bit or 32-bit External Interface (XINTF) – Over 2M x 16 Address Reach
● On-Chip Memory – 256K x 16 Flash, 34K x 16 SARAM – 1K x 16 OTP ROM
● Boot ROM (8K x 16) – With Software Boot Modes (via SCI, SPI, CAN, I2C, McBSP, XINTF, and Parallel I/O) – Standard Math Tables
● Clock and System Control – Dynamic PLL Ratio Changes Supported – On-Chip Oscillator – Watchdog Timer Module
● GPIO0 to GPIO63 Pins Can Be Connected to One of the Eight External Core Interrupts
● Peripheral Interrupt Expansion (PIE) Block That...
