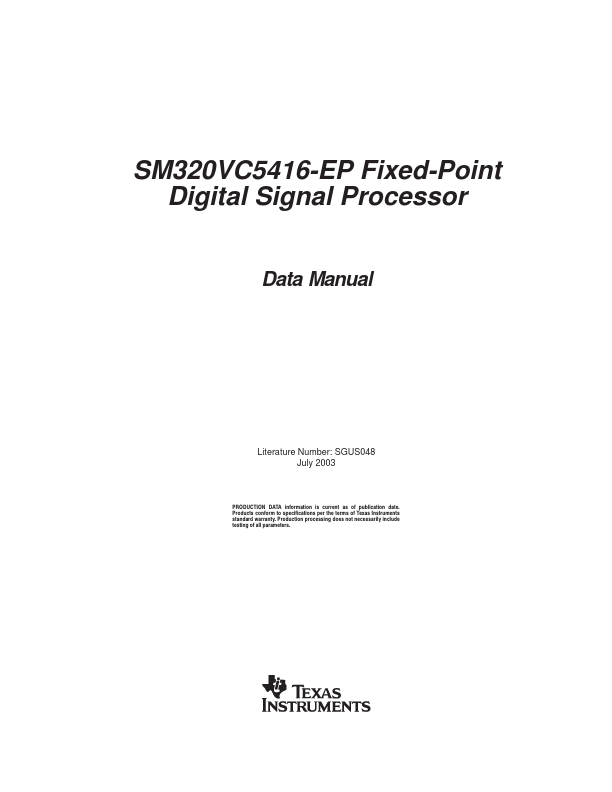

Texas Instruments SM320VC5416-EP
the SM320VC5416, lists the pin assignments, and describes the function of each pin. This data manual also provides a detailed description section, electrical specifications, parameter measurement information, and mechanical data about the available packaging. This processor provides an arithmetic logic unit (ALU) with a high degree of parallelism, application-specific hardware logic, on-chip memory, and additional on-chip peripherals.| Part No. | SM320VC5416-EP |
|---|---|
| Datasheet | SM320VC5416-EP Download |
| Manufacturer |  Texas Instruments |
| Description | Fixed-Point Digital Signal Processor |
| Buy | Stock & Price |
FEATURES
D Controlled Baseline − One Assembly/Test Site, One Fabrication Site D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product-Change Notification D Qualification Pedigree† D Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Memory Bus D 40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators D 17- × 17-Bit Parallel Multiplier Coupled to a 40-Bit Dedicated Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operation D Compare, Select, and Store Unit (CSSU) for the Add/Compare Selection of the Viterbi Operator D Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle D Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units (ARAUs) D Data Bus With a Bus Holder Feature D Extended Addressing Mode for 8M × 16-Bit Maximum Addressable External Program Space D 128K x 16-Bit On-Chi...
