Datasheet Details
| Part number | SN74HC04 |
|---|---|
| Manufacturer | Texas Instruments |
| File Size | 1.81 MB |
| Description | Hex Inverters |
| Datasheet | SN74HC04-etcTI.pdf |
|
|
Overview: www.ti.com SCLS078H – DECEMBERSS1NN9877244–HHRCCEV00I44S,,ESSDNNAP55R44IHHL CC20002441 SCLS078H – DECEMBER 1982 – REVISED APRIL 2021 SNx4HC04 Hex Inverters.
| Part number | SN74HC04 |
|---|---|
| Manufacturer | Texas Instruments |
| File Size | 1.81 MB |
| Description | Hex Inverters |
| Datasheet | SN74HC04-etcTI.pdf |
|
|
|

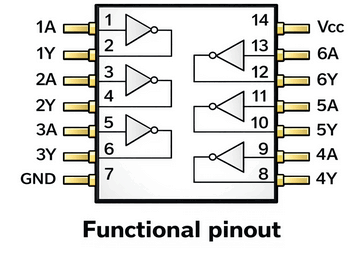

This device contains six independent inverters.
Each gate performs the Boolean function Y = A in positive logic.
Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) SN74HC04D SOIC (14) 8.70 mm × 3.90 mm SN74HC04DB SSOP (14) 6.50 mm × 5.30 mm SN74HC04N PDIP (14) 19.30 mm × 6.40 mm SN74HC04NS SO (14) 10.20 mm × 5.30 mm SN74HC04PW TSSOP (14) 5.00 mm × 4.40 mm SN54HC04J CDIP (14) 21.30 mm × 7.60 mm SN54HC04W CFP (14) 9.20 mm × 6.29 mm SN54HC04FK LCCC (20) 8.90 mm × 8.90 mm (1) For all available packages, see the orderable addendum at the end of the data sheet.
