SN74LVC1G14 - Single Schmitt-Trigger Inverter

Description

This single Schmitt-trigger inverter is designed for 1.65V to 5.5V VCC operation.

The SN74LVC1G14 device contains one inverter and performs the Boolean function Y = A.

Features

  • Latch-up performance exceeds 100mA per JESD 78, Class II.
  • ESD protection exceeds JESD 22.
  • 2000V human-body model (A114-A).
  • 200V machine model (A115-A).
  • 1000V charged-device model (C101).
  • Available in the Texas Instruments NanoFree™ package.
  • Supports 5V VCC operation.
  • Inputs accept voltages to 5.5V.
  • Maximum tpd of 4.6ns at 3.3V.
  • Low power consumption, 10µA maximum ICC.
  • ±24mA output drive at 3.3V.

📥 Download Datasheet

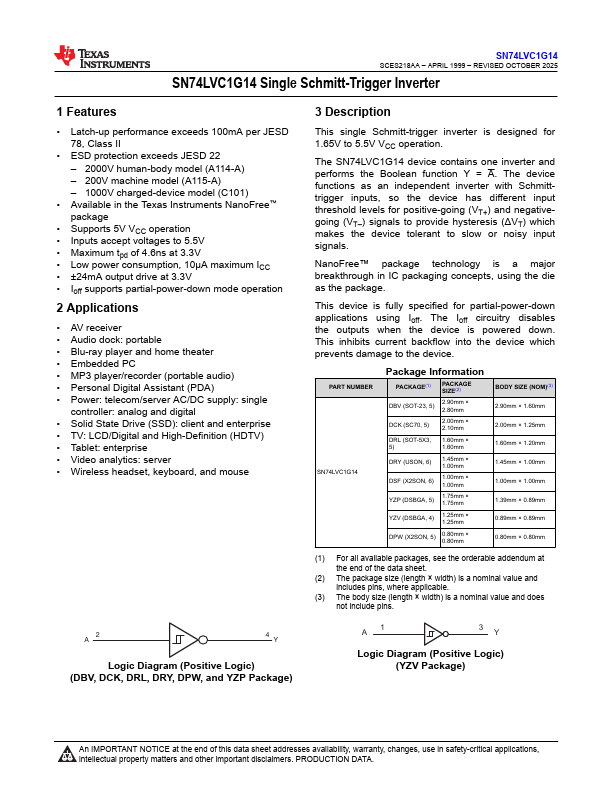

Datasheet preview – SN74LVC1G14

Datasheet Details

Part number SN74LVC1G14
Manufacturer Texas Instruments
File Size 2.86 MB
Description Single Schmitt-Trigger Inverter
Datasheet download datasheet SN74LVC1G14 Datasheet

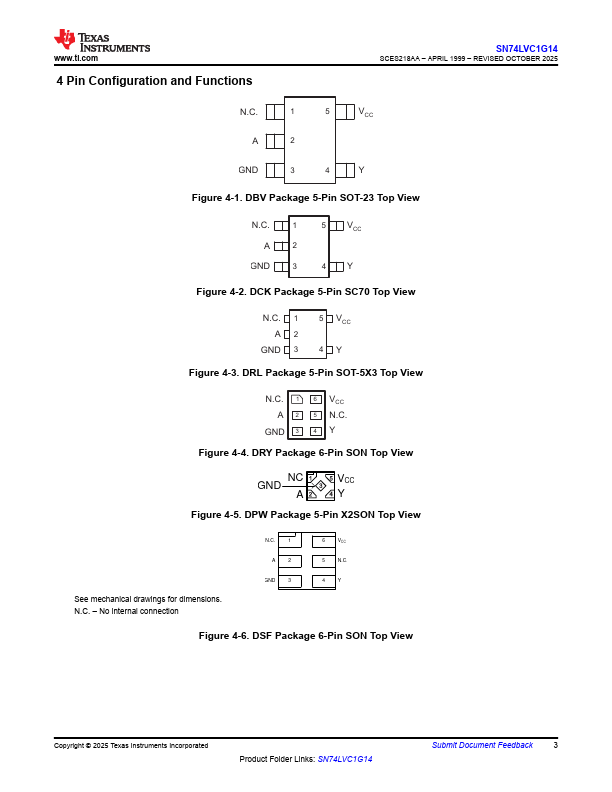

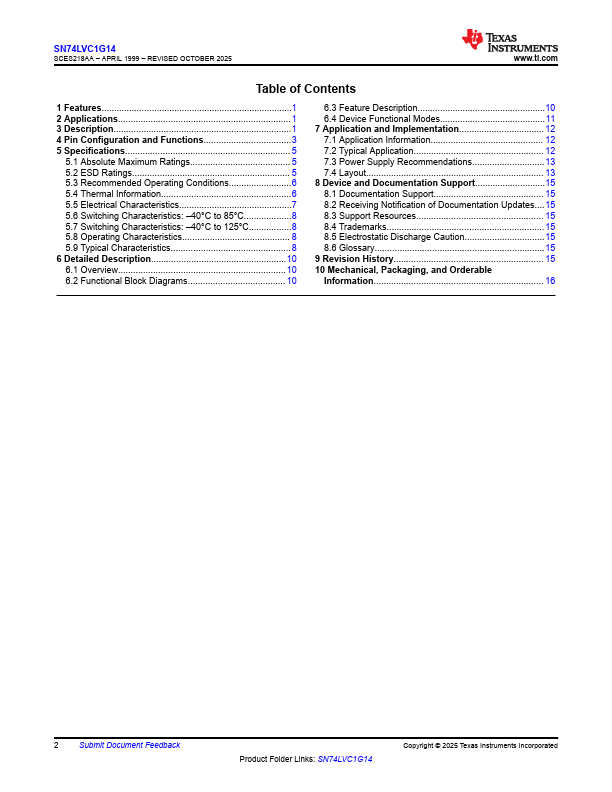

Additional preview pages of the SN74LVC1G14 datasheet.

📁 Similar Datasheet

  • SN74LVC1G125 - high performance non-inverting buffer (UMW)
  • SN74LVC1G34 - Single buffer (UMW)
  • SN74L71 - AND-Gate R-S Master-Slave F-F (National Semiconductor)
  • SN74L74N - Dual D-Type Flip-Flop (ETC)
  • SN74LS00 - QUAD 2-INPUT NAND GATE (Motorola)
  • SN74LS00 - Quad 2-Input NAND Gate (ON Semiconductor)
  • SN74LS02 - QUAD 2-INPUT NOR GATE (Motorola)
  • SN74LS02 - QUAD 2-INPUT NOR GATE (ON Semiconductor)
  • SN74LS04 - Hex Inverter (ON Semiconductor)
  • SN74LS04 - HEX INVERTER (Motorola)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
SN74LVC1G14 SCES218AA – APRIL 1999 – REVISED OCTOBER 2025 SN74LVC1G14 Single Schmitt-Trigger Inverter 1 Features • Latch-up performance exceeds 100mA per JESD 78, Class II • ESD protection exceeds JESD 22 – 2000V human-body model (A114-A) – 200V machine model (A115-A) – 1000V charged-device model (C101) • Available in the Texas Instruments NanoFree™ package • Supports 5V VCC operation • Inputs accept voltages to 5.5V • Maximum tpd of 4.6ns at 3.3V • Low power consumption, 10µA maximum ICC • ±24mA output drive at 3.
