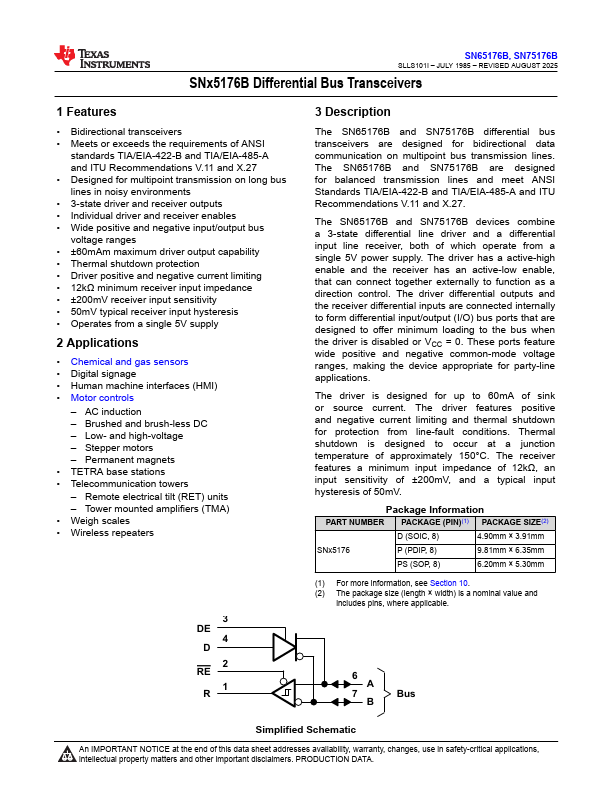

SN75176B Datasheet | Texas Instruments

Features - Bidirectional transceivers - Meets or exceeds the requirements of ANSI standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Remendations V.11 and X.27 - Designed for multipoint transmission on long bus lines in noisy environments - 3-state driver and receiver outputs - Individual driver and receiver enables - Wide positive and negative input/output bus voltage ranges - ±60m Am maximum driver output capability - Thermal shutdown protection - Driver positive and negative current limiting - 12kΩ minimum receiver input impedance - ±200m V receiver input sensitivity - 50m V typical receiver input hysteresis - Operates from a single 5V supply 2 Applications - Chemical and gas sensors - Digital signage - Human machine interfaces (HMI) - Motor controls - AC induction - Brushed and brush-less DC - Low- and high-voltage - Stepper motors - Permanent magnets - TETRA base stations - Telemunication towers - Remote electrical tilt (RET) units - Tower mounted amplifiers (TMA) - Weigh scales - Wireless repeaters 3 DE 4 D 2 RE 1 R 3 Description The SN65176B and SN75176B differential bus transceivers are designed for bidirectional data munication on multipoint bus transmission lines. The SN65176B and SN75176B are designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Remendations V.11 and X.27. The SN65176B and SN75176B devices bine a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5V power supply. The driver has a active-high enable and the receiver has an active-low enable, that can connect together externally to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus when the driver is disabled or VCC = 0. These ports feature wide positive and negative mon-mode voltage ranges, making the...
