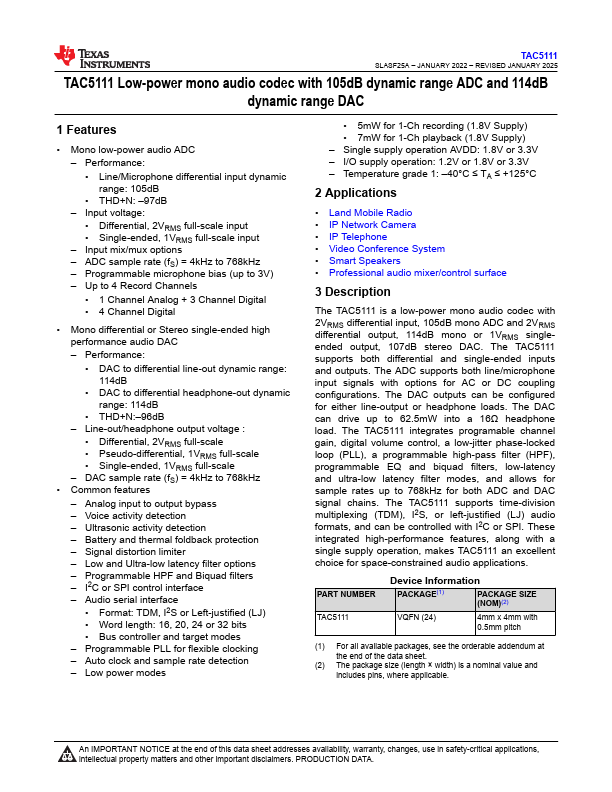

Texas Instruments TAC5111
The TAC5111 is a low-power mono audio codec with 2VRMS differential input, 105dB mono ADC and 2VRMS differential output, 114dB mono or 1VRMS singleended output, 107dB stereo DAC. The TAC5111 supports both differential and single-ended inputs and outputs. The ADC supports both line/microphone input signals with options for AC or DC coupling configurations.| Part No. | TAC5111 |
|---|---|
| Datasheet | TAC5111 Download |
| Manufacturer |  Texas Instruments |
| Description | Low-power mono audio codec |
| Buy | Stock & Price |
FEATURES
● Mono low-power audio ADC – Performance:● Line/Microphone differential input dynamic range: 105dB
● THD+N: –97dB – Input voltage:
● Differential, 2VRMS full-scale input
● Single-ended, 1VRMS full-scale input – Input mix/mux options – ADC sample rate (fS) = 4kHz to 768kHz – Programmable microphone bias (up to 3V) – Up to 4 Record Channels
● 1 Channel Analog + 3 Channel Digital
● 4 Channel Digital
● Mono differential or Stereo single-ended high performance audio DAC – Performance:
● DAC to differential line-out dynamic range: 114dB
● DAC to differential headphone-out dynamic range: 114dB
● THD+N:–96dB – Line-out/headphone output voltage :
● Differential, 2VRMS full-scale
● Pseudo-differential, 1VRMS full-scale
● Single-ended, 1VRMS full-scale – DAC sample rate (fS) = 4kHz to 768kHz
● Common features – Analog input to output bypass – Voice activity detection – Ultrasonic activity detection – Battery and thermal foldback protection – Signal distortion limiter – Low and Ultra-low...
