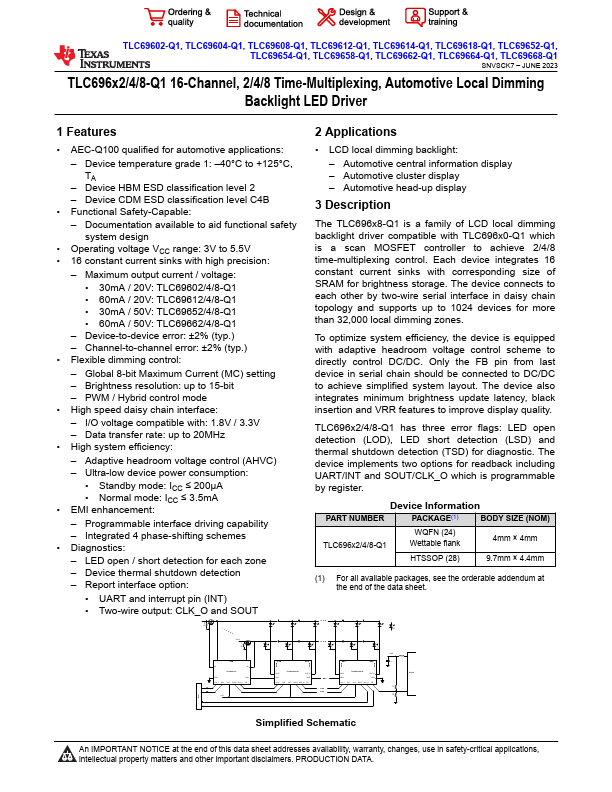

TLC69602-Q1
Overview
The TLC696x8-Q1 is a family of LCD local dimming backlight driver compatible with TLC696x0-Q1 which is a scan MOSFET controller to achieve 2/4/8 time.
- AEC-Q100 qualified for automotive applications: - Device temperature grade 1: -40°C to +125°C, TA - Device HBM ESD classification level 2 - Device CDM ESD classification level C4B
- Functional Safety-Capable: - Documentation available to aid functional safety system design
- Operating voltage VCC range: 3V to 5.5V
- 16 constant current sinks with high precision: - Maximum output current / voltage:
- 30mA / 20V: TLC69602/4/8-Q1
- 60mA / 20V: TLC69612/4/8-Q1
- 30mA / 50V: TLC69652/4/8-Q1
- 60mA / 50V: TLC69662/4/8-Q1 - Device-to-device error: ±2% (typ.) - Channel-to-channel error: ±2% (typ.)
- Flexible dimming control: - Global 8-bit Maximum Current (MC) setting - Brightness resolution: up to 15-bit - PWM / Hybrid control mode
- High speed daisy chain interface: - I/O voltage compatible with: 1.8V / 3.3V - Data transfer rate: up to 20MHz
