TLV1117 - Adjustable and Fixed Low-Dropout Voltage Regulator

Description

The TLV1117 is a linear voltage that provides up to 800mA of output current with a supported input voltage range from 2.7V to 15V.

The fixed version of the TLV1117 supports an output range from 1.5V to 5V and the adjustable version supports an output range from 1.25V to 13.8V.

Features

  • Input voltage range VIN: 2.7V to 15V.
  • Output voltage options:.
  • Fixed: 1.5V to 5V.
  • Adjustable: 1.25V to 13.8V.
  • Output current: 800mA.
  • Output accuracy (new chip):.
  • Fixed: ±1.0% at TJ = 25°C.
  • Adjustable: ±1.0% at TJ = 25°C.
  • Quiescent current (IQ):.
  • Fixed: 60μA (typical, approximately 1.5μA in shutdown) (new chip).
  • Adjustable: 5mA (typical).
  • Packages:.
  • New chip:.
  • 4-pin SOT-2.

📥 Download Datasheet

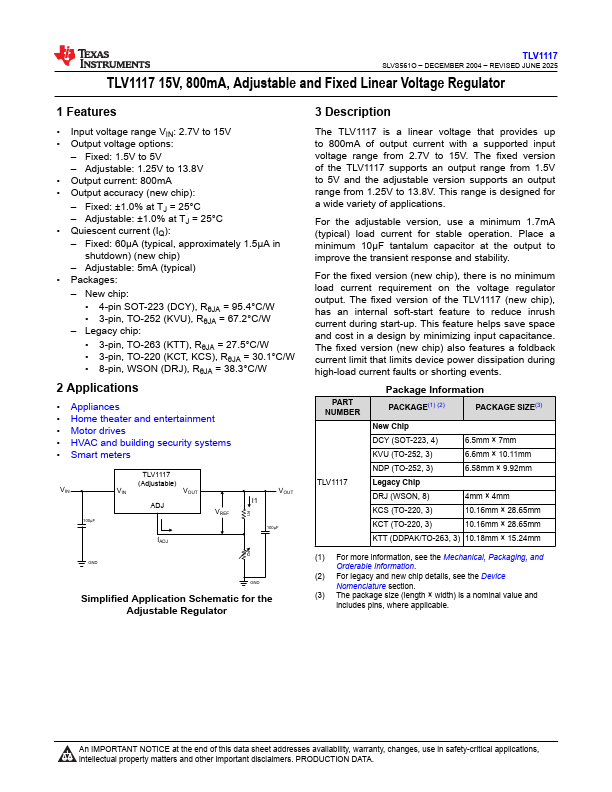

Datasheet preview – TLV1117

Datasheet Details

Part number TLV1117
Manufacturer Texas Instruments
File Size 2.38 MB
Description Adjustable and Fixed Low-Dropout Voltage Regulator
Datasheet download datasheet TLV1117 Datasheet

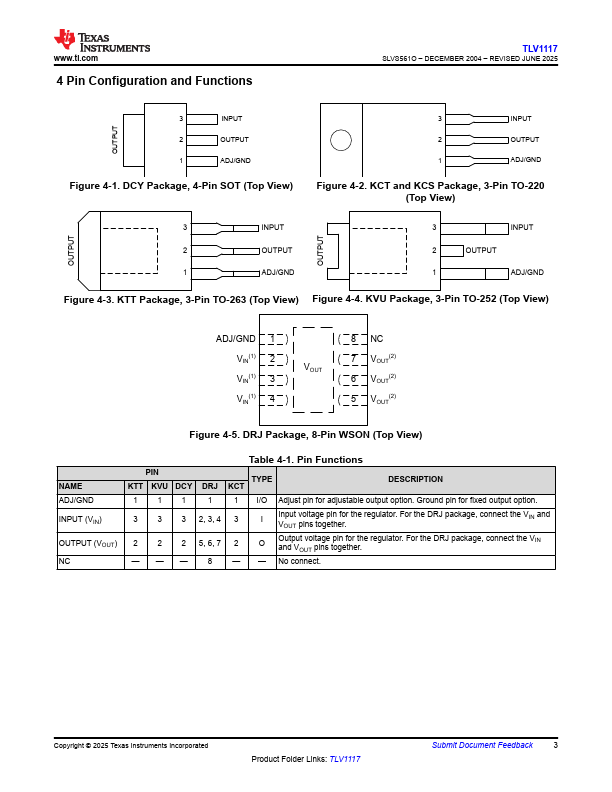

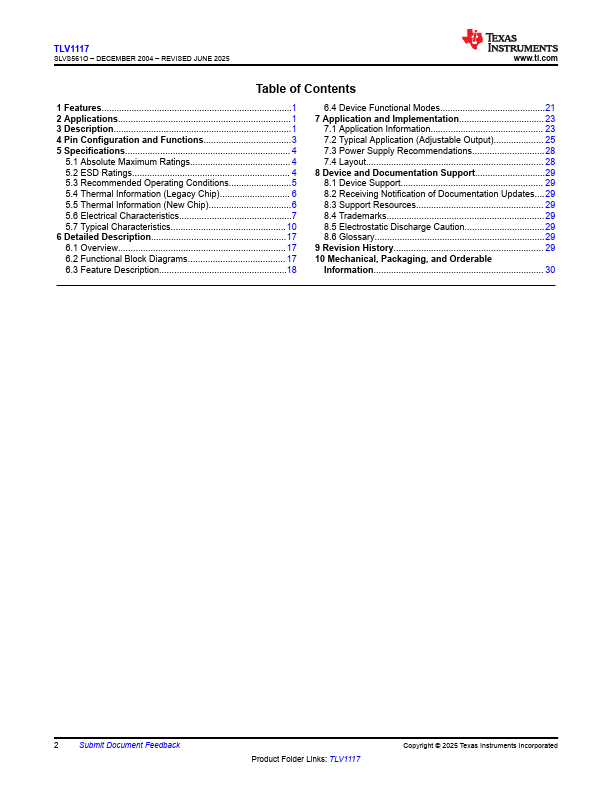

Additional preview pages of the TLV1117 datasheet.

📁 Similar Datasheet

  • TLV271 - Operational Amplifier (ON Semiconductor)
  • TLV271 - CMOS RAIL TO RAIL OUTPUT OPERATIONAL AMPLIFIERS (Diodes)
  • TLV272 - Operational Amplifier (ON Semiconductor)
  • TLV272 - CMOS RAIL TO RAIL OUTPUT OPERATIONAL AMPLIFIERS (Diodes)
  • TLV274 - Operational Amplifier (ON Semiconductor)
  • TLV3011 - SOT23 Comparator (Burr-Brown)
  • TLV3012 - SOT23 Comparator (Burr-Brown)
  • TLV320AIC31 - LOW POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320AIC3104 - LOW-POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320AIC32 - LOW POWER STEREO AUDIO CODEC (Burr-Brown)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
TLV1117 SLVS561O – DECEMBER 2004 – REVISED JUNE 2025 TLV1117 15V, 800mA, Adjustable and Fixed Linear Voltage Regulator 1 Features • Input voltage range VIN: 2.7V to 15V • Output voltage options: – Fixed: 1.5V to 5V – Adjustable: 1.25V to 13.8V • Output current: 800mA • Output accuracy (new chip): – Fixed: ±1.0% at TJ = 25°C – Adjustable: ±1.0% at TJ = 25°C • Quiescent current (IQ): – Fixed: 60μA (typical, approximately 1.5μA in shutdown) (new chip) – Adjustable: 5mA (typical) • Packages: – New chip: • 4-pin SOT-223 (DCY), RθJA = 95.4°C/W • 3-pin, TO-252 (KVU), RθJA = 67.2°C/W – Legacy chip: • 3-pin, TO-263 (KTT), RθJA = 27.5°C/W • 3-pin, TO-220 (KCT, KCS), RθJA = 30.1°C/W • 8-pin, WSON (DRJ), RθJA = 38.
