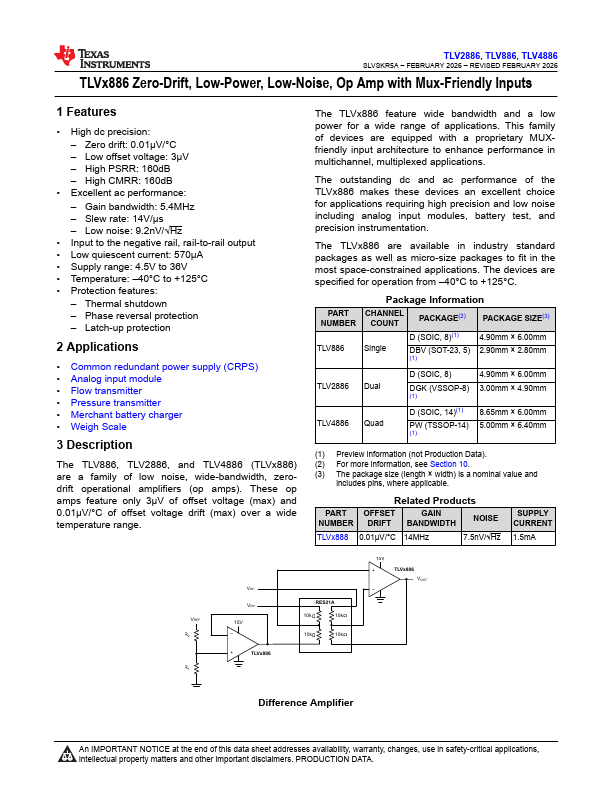

TLV4886
Features
- High dc precision:
- Zero drift: 0.01μV/°C
- Low offset voltage: 3μV
- High PSRR: 160d B
- High CMRR: 160d B
- Excellent ac performance:
- Gain bandwidth: 5.4MHz
- Slew rate: 14V/µs
- Low noise: 9.2n V/√Hz
- Input to the negative rail, rail-to-rail output
- Low quiescent current: 570µA
- Supply range: 4.5V to 36V
- Temperature:
- 40°C to +125°C
- Protection features
:
- Thermal shutdown
- Phase reversal protection
- Latch-up protection
2 Applications
- mon redundant power supply (CRPS)
- Analog input module
- Flow transmitter
- Pressure transmitter
- Merchant battery charger
- Weigh Scale
3 Description
The TLV886, TLV2886, and TLV4886 (TLVx886) are a family of low noise, wide-bandwidth, zerodrift operational amplifiers (op amps). These op amps feature only 3µV of offset voltage (max) and 0.01µV/°C of offset voltage drift (max) over a wide temperature range.
The TLVx886 feature wide bandwidth and a low power for a wide range of applications. This family of devices are equipped...
