Texas Instruments TLV70033
The TLV700 series of low-dropout (LDO) linear regulators are low quiescent current devices with excellent line and load transient performance. These LDOs are designed for power-sensitive applications.| Part No. | TLV70033 |
|---|---|
| Datasheet | TLV70033 Download |
| Manufacturer |  Texas Instruments |
| Description | 200-mA Low-Dropout Regulator |
| Buy | Stock & Price |
FEATURES
●1 Very Low Dropout: – 43 mV at IOUT = 50 mA, VOUT = 2.8 V – 85 mV at IOUT = 100 mA, VOUT = 2.8 V – 175 mV at IOUT = 200 mA, VOUT = 2.35 V● 2% Accuracy
● Low IQ: 31 μA
● Available in Fixed-Output Voltages from 1.2 V to 4.8 V
● High PSRR: 68 dB at 1 kHz
● Stable With Effective Capacitance of 0.1 μF(1)
● Thermal Shutdown and Overcurrent Protection

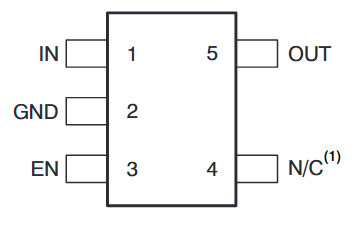

● Available in 1.5-mm × 1.5-mm SON-6, SOT23-5, and SC-70 Packages (1) See the Input and Output Capacitor Requirements. 2
APPLICATIONS
● Wireless Handsets● Smart Phones, PDAs
● ZigBee® Networks
● Bluetooth® Devices
● Li-Ion Operated Handheld Products
● WLAN and Other PC Add-on Cards 3
DESCRIPTION
A precision bandgap and error amplifier provides overall 2% accuracy. Low output noise, very high power-supply rejection ratio (PSRR), and low dropout voltage make this series of devices ideal for most battery-operated handheld equipment. All device versions have thermal shutdown and current limit for safety. Furthermore, these devices are stable with an effective output capacitance of only 0.1 μF.
