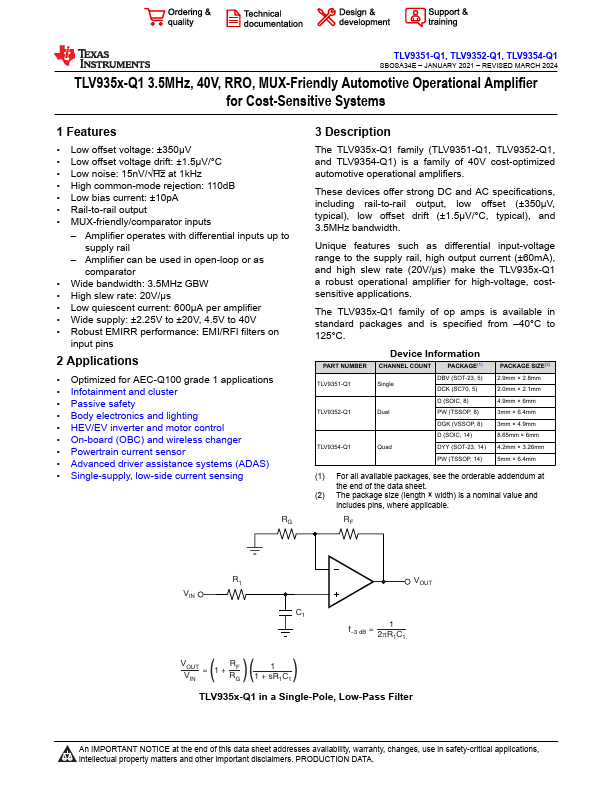

TLV9351-Q1
Features
- Low offset voltage: ±350µV
- Low offset voltage drift: ±1.5µV/°C
- Low noise: 15n V/√Hz at 1k Hz
- High mon-mode rejection: 110d B
- Low bias current: ±10p A
- Rail-to-rail output
- MUX-friendly/parator inputs
- Amplifier operates with differential inputs up to supply rail
- Amplifier can be used in open-loop or as parator
- Wide bandwidth: 3.5MHz GBW
- High slew rate: 20V/µs
- Low quiescent current: 600µA per amplifier
- Wide supply: ±2.25V to ±20V, 4.5V to 40V
- Robust EMIRR performance: EMI/RFI filters on input pins
2 Applications
- Optimized for AEC-Q100 grade 1 applications
- Infotainment and cluster
- Passive safety
- Body electronics and lighting
- HEV/EV inverter and motor control
- On-board (OBC) and wireless changer
- Powertrain current sensor
- Advanced driver assistance systems (ADAS)
- Single-supply, low-side current sensing
3 Description
The TLV935x-Q1 family (TLV9351-Q1, TLV9352-Q1, and TLV9354-Q1) is a family of 40V cost-optimized automotive operational...
