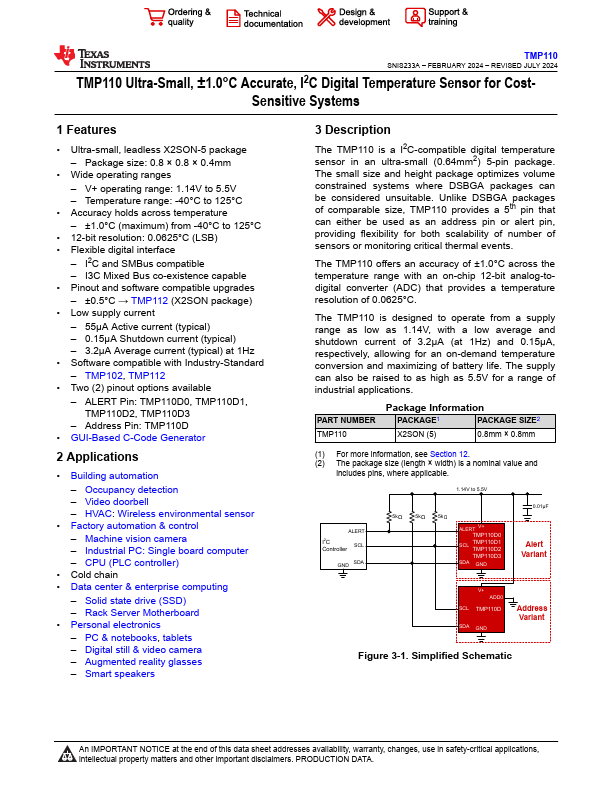

Texas Instruments TMP110
The TMP110 is a I2C-compatible digital temperature sensor in an ultra-small (0.64mm2) 5-pin package. The small size and height package optimizes volume constrained systems where DSBGA packages can be considered unsuitable. The TMP110 offers an accuracy of ±1.0°C across the temperature range with an on-chip 12-bit analog-todigital converter (ADC) that provides a temperature resolution of 0.0625°C.| Part No. | TMP110 |
|---|---|
| Datasheet | TMP110 Download |
| Manufacturer |  Texas Instruments |
| Description | I2C Digital Temperature Sensor |
| Buy | Stock & Price |
FEATURES
● Ultra-small, leadless X2SON-5 package – Package size: 0.8 × 0.8 × 0.4mm● Wide operating ranges – V+ operating range: 1.14V to 5.5V – Temperature range: -40°C to 125°C
● Accuracy holds across temperature – ±1.0°C (maximum) from -40°C to 125°C
● 12-bit resolution: 0.0625°C (LSB)
● Flexible digital interface – I2C and SMBus compatible – I3C Mixed Bus co-existence capable
● Pinout and software compatible upgrades – ±0.5°C → TMP112 (X2SON package)
● Low supply current – 55μA Active current (typical) – 0.15μA Shutdown current (typical) – 3.2μA Average current (typical) at 1Hz
● Software compatible with Industry-Standard – TMP102, TMP112
● Two (2) pinout options available – ALERT Pin: TMP110D0, TMP110D1, TMP110D2, TMP110D3 – Address Pin: TMP110D
● GUI-Based C-Code Generator 2
APPLICATIONS
● Building automation – Occupancy detection – Video doorbell – HVAC: Wireless environmental sensor● Factory automation & control – Machine vision camera – Industrial PC: Single board computer –...
