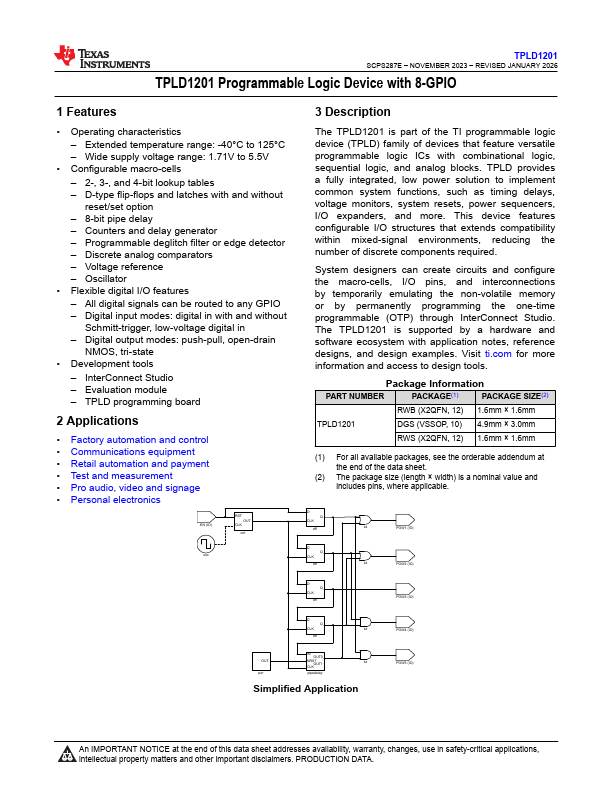

TPLD1201
Features
- Operating characteristics
- Extended temperature range: -40°C to 125°C
- Wide supply voltage range: 1.71V to 5.5V
- Configurable macro-cells
- 2-, 3-, and 4-bit lookup tables
- D-type flip-flops and latches with and without reset/set option
- 8-bit pipe delay
- Counters and delay generator
- Programmable deglitch filter or edge detector
- Discrete analog parators
- Voltage reference
- Oscillator
- Flexible digital I/O features
- All digital signals can be routed to any GPIO
- Digital input modes: digital in with and without
Schmitt-trigger, low-voltage digital in
- Digital output modes: push-pull, open-drain
NMOS, tri-state
- Development tools
- Inter Connect Studio
- Evaluation module
- TPLD programming board
2 Applications
- Factory automation and control
- munications equipment
- Retail automation and payment
- Test and measurement
- Pro audio, video and signage
- Personal electronics
EN (IO)
RST OUT
CLK cnt osc
3 Description
The TPLD1201 is part of the TI...
