TPS2595 - eFuse

Description

The TPS2595xx family of eFuses (integrated FET hot swap devices) is a highly integrated circuit protection and power management solution in a small package.

Features

  • 1 Wide Input Voltage Range: 2.7 V to 18 V.
  • 20 V Absolute Maximum.
  • 3 V to 18 V for TPS2595x5 Version.
  • Low On-Resistance: RON = 34 mΩ (Typical).
  • Fast Overvoltage Protection Clamp (3.8-V, 5.7-V, and 13.7-V options) With a Response Time of 5 µs (Typical).
  • TPS2595x0, TPS2595x1, TPS2595x5: Active High Enable Input With Adjustable Undervoltage Lockout (UVLO).
  • TPS2595x3: Active Low Enable Input With Adjustable Overvoltage Lockout (OVLO).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TPS2534 Dual Channel Thermopile PerkinElmer Optoelectronics
TPS20 high reliable pressure transmitter Konics
TPS232 Thermopile Sensor PerkinElmer Optoelectronics
TPS2398 -48V Hot Swap Controller ON Semiconductor
TPS2399 -48V Hot Swap Controller ON Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
TPS2590 20-V High-Current Load Switch
TPS25910 20-V Integrated Hotswap
TPS25921 eFuse
TPS25921A eFuse
TPS25921L eFuse

Full PDF Text Transcription

Click to expand full text

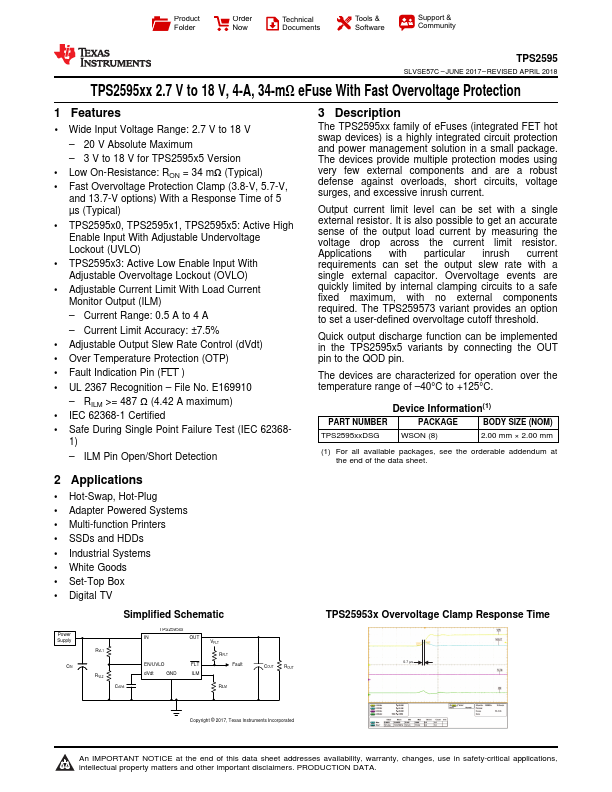

Product Folder Order Now Technical Documents Tools & Software Support & Community TPS2595 SLVSE57A – JUNE 2017 – REVISED DECEMBER 2017 TPS2595xx 2.7 V to 18 V, 4-A, 34-mΩ eFuse With Fast Overvoltage Protection 1 Features •1 Wide Input Voltage Range: 2.7 V to 18 V – 20 V Absolute Maximum – 3 V to 18 V for TPS2595x5 Version • Low On-Resistance: RON = 34 mΩ (Typical) • Fast Overvoltage Protection Clamp (3.8-V, 5.7-V, and 13.7-V options) With a Response Time of 5 µs (Typical) • TPS2595x0, TPS2595x1, TPS2595x5: Active High Enable Input With Adjustable Undervoltage Lockout (UVLO) • TPS2595x3: Active Low Enable Input With Adjustable Overvoltage Lockout (OVLO) • Adjustable Current Limit With Load Current Monitor Output (ILM) – Current Range: 0.5 A to 4 A – Current Limit Accuracy: ±7.
