TPS3899
Overview

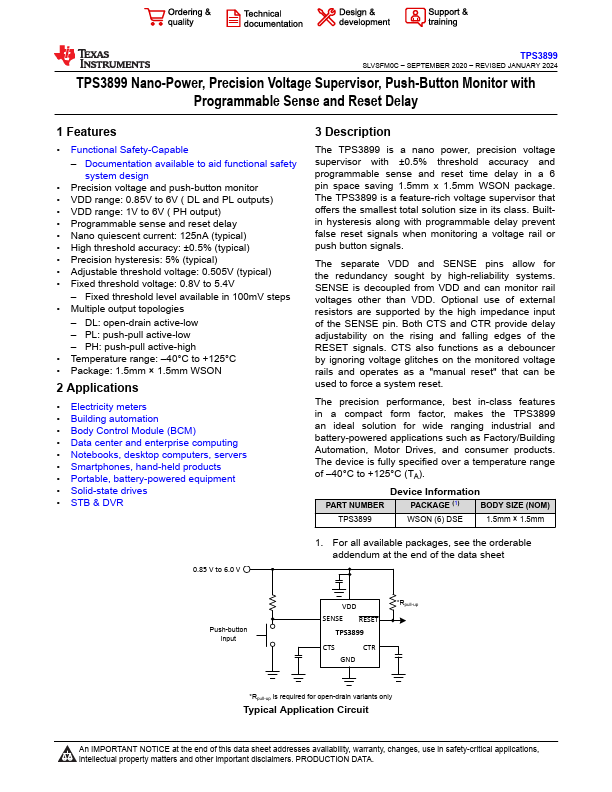

The TPS3899 is a nano power, precision voltage supervisor with ±0.5% threshold accuracy and programmable sense and reset time delay in a 6 pin space saving 1.5mm x 1.5mm WSON package. The TPS3899 is a feature-rich voltage supervisor that offers the smallest total solution size in its class.
- Functional Safety-Capable - Documentation available to aid functional safety system design
- Precision voltage and push-button monitor
- VDD range: 0.85V to 6V ( DL and PL outputs)
- VDD range: 1V to 6V ( PH output)
- Programmable sense and reset delay
- Nano quiescent current: 125nA (typical)
- High threshold accuracy: ±0.5% (typical)
- Precision hysteresis: 5% (typical)
- Adjustable threshold voltage: 0.505V (typical)
- Fixed threshold voltage: 0.8V to 5.4V - Fixed threshold level available in 100mV steps
