Datasheet Summary
SLVSI34A
- APRIL 2025
- REVISED JUNE 2025

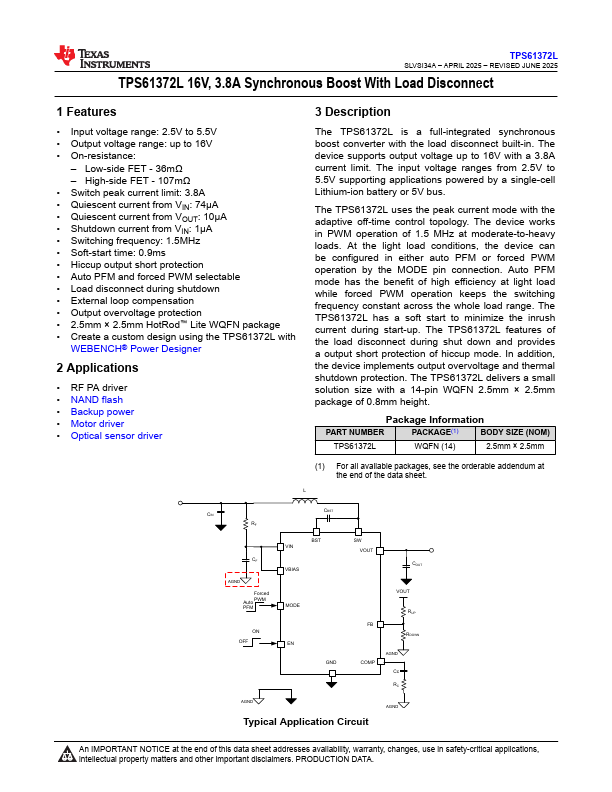

TPS61372L 16V, 3.8A Synchronous Boost With Load Disconnect
1 Features
3 Description
- Input voltage range: 2.5V to 5.5V
- Output voltage range: up to 16V
- On-resistance:
- Low-side FET
- 36mΩ
- High-side FET
- 107mΩ
- Switch peak current limit: 3.8A
- Quiescent current from VIN: 74μA
- Quiescent current from VOUT: 10μA
- Shutdown current from VIN: 1μA
- Switching frequency: 1.5MHz
- Soft-start time: 0.9ms
- Hiccup output short protection
- Auto PFM and forced PWM selectable
- Load disconnect during shutdown
- External loop pensation
- Output overvoltage protection
- 2.5mm × 2.5mm HotRod™ Lite WQFN package
- Create a custom design...
