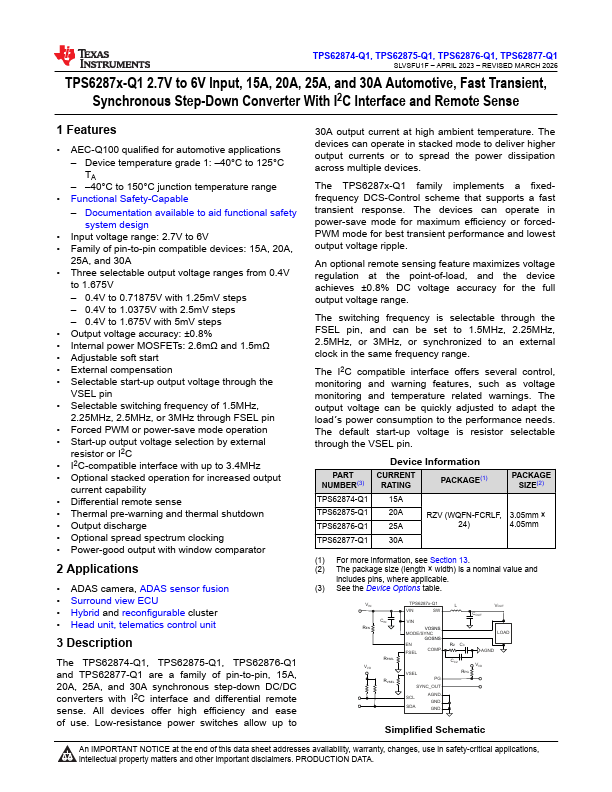

TPS62875-Q1 Datasheet | Texas Instruments

Features - AEC-Q100 qualified for automotive applications - Device temperature grade 1: - 40°C to 125°C TA - - 40°C to 150°C junction temperature range - Functional Safety-Capable - Documentation available to aid functional safety system design - Input voltage range: 2.7V to 6V - Family of pin-to-pin patible devices: 15A, 20A, 25A, and 30A - Three selectable output voltage ranges from 0.4V to 1.675V - 0.4V to 0.71875V with 1.25m V steps - 0.4V to 1.0375V with 2.5m V steps - 0.4V to 1.675V with 5m V steps - Output voltage accuracy: ±0.8% - Internal power MOSFETs: 2.6mΩ and 1.5mΩ - Adjustable soft start - External pensation - Selectable start-up output voltage through the VSEL pin - Selectable switching frequency of 1.5MHz, 2.25MHz, 2.5MHz, or 3MHz through FSEL pin - Forced PWM or power-save mode operation - Start-up output voltage selection by external resistor or I2C - I2C-patible interface with up to 3.4MHz - Optional stacked operation for increased output current capability - Differential remote sense - Thermal pre-warning and thermal shutdown - Output discharge - Optional spread spectrum clocking - Power-good output with window parator 2 Applications - ADAS camera, ADAS sensor fusion - Surround view ECU - Hybrid and reconfigurable cluster - Head unit, telematics control unit 3 Description The TPS62874-Q1, TPS62875-Q1, TPS62876-Q1 and TPS62877-Q1 are a family of pin-to-pin, 15A, 20A, 25A, and 30A synchronous step-down DC/DC converters with I2C interface and differential remote sense. All devices offer high efficiency and ease of use. Low-resistance power switches allow up to 30A output current at high ambient temperature. The devices can operate in stacked mode to deliver higher output currents or to spread the power dissipation across multiple devices. The TPS6287x-Q1 family implements a fixedfrequency DCS-Control scheme that supports a fast transient response. The devices can operate in power-save mode for maximum efficiency or forced PWM mode for best transient...
