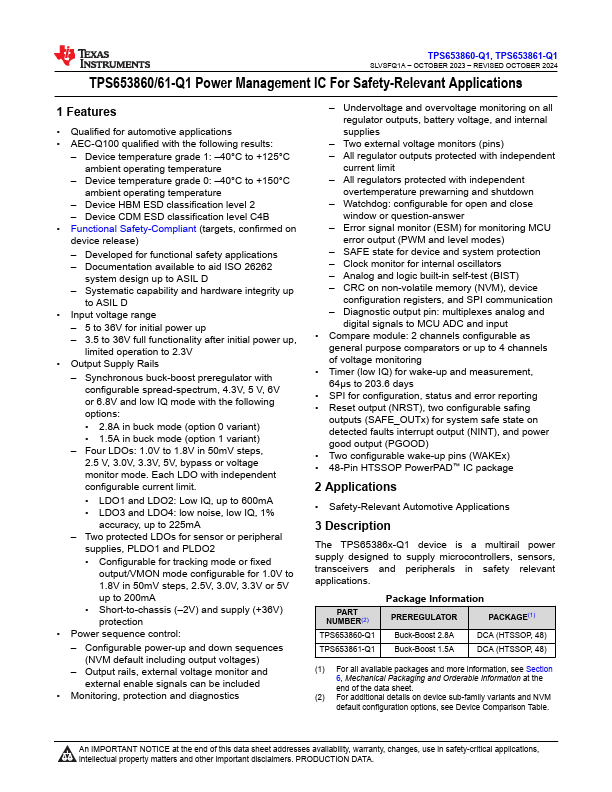

TPS653861-Q1
Features
- Qualified for automotive applications
- AEC-Q100 qualified with the following results:
- Device temperature grade 1:
- 40°C to +125°C ambient operating temperature
- Device temperature grade 0:
- 40°C to +150°C ambient operating temperature
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
- Functional Safety-pliant (targets, confirmed on device release)
- Developed for functional safety applications
- Documentation available to aid ISO 26262 system design up to ASIL D
- Systematic capability and hardware integrity up to ASIL D
- Input voltage range
- 5 to 36V for initial power up
- 3.5 to 36V full functionality after initial power up, limited operation to 2.3V
- Output Supply Rails
- Synchronous buck-boost preregulator with configurable spread-spectrum, 4.3V, 5 V, 6V or 6.8V and low IQ mode with the following options:
- 2.8A in buck mode (option 0 variant)
- 1.5A in buck mode (option 1 variant)
- Four LDOs: 1.0V to 1.8V in 50m V steps, 2.5 V,...
