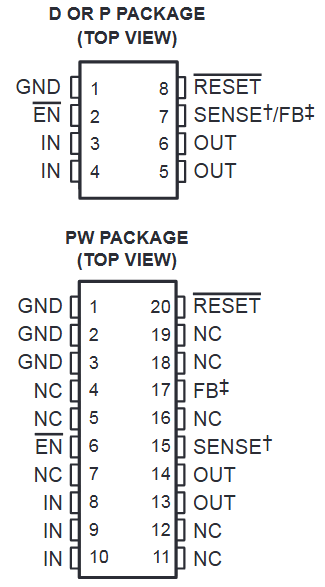

D OR P PACKAGE (TOP VIEW) GND EN IN IN 1 2 3 4 8 RESET 7 SENSE†/FB‡ 6 OUT 5 OUT PW PACKAGE (TOP VIEW) GND GND GND NC NC EN NC IN IN IN 1 2 3 4 5 6 7 8 9 10 20 RESET 19 NC 18 NC 17 FB‡ 16 NC 15 SENSE† 14 OUT 13 OUT 12 NC 11 NC description NC – No internal connection † SENSE – Fixed voltage options only (TPS7325, TPS7330, TPS7333, TPS7348, and TPS7350) ‡ FB – Adjustable version only (TPS7301) They are differentiated from the TPS71xx and TPS72xx LDOs by their integrated delayed microprocessor-reset function. If the precision delayed reset is not required, the TPS71xx and TPS72xx should be considered.¶ AVAILABLE OPTIONS OUTPUT VOLTAGE (V) NEGATIVE-GOING RESET THRESHOLD VOLTAGE (V) PACKAGED DEVICES TJ MIN TYP MAX MIN TYP MAX SMALL OUTLINE (D) PLASTIC DIP (P) TSSOP (PW) CHIP FORM (Y) 4.9 5 5.1 4.55 4.65 4.75 TPS7350QD TPS7350QP TPS7350QPW TPS7350Y 4.75 4.85 4.95 4.5 4.6 4.7 TPS7348QD TPS7348QP TPS7348QPW TPS7348Y – 40°C to 125°C 3.23 2.94 2.425 3.3 3.37 3 3.06 2.5 2.575 2.868 2.
