Texas Instruments TPS79333
The TPS793 family of low-dropout (LDO) low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in NanoStar™ wafer chip scale and SOT23 packages. Each device in the family is stable, with a small, 2.2-μF ceramic capacitor on the output. The TPS793 family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example, 112 mV at 200 mA, TPS79330).| Part No. | TPS79333 |
|---|---|
| Datasheet | TPS79333 Download |
| Manufacturer |  Texas Instruments |
| Description | 200-mA Low-Dropout Linear Regulator |
| Buy | Stock & Price |
FEATURES
●1 200-mA RF Low-Dropout Regulator With Enable● Available in Fixed-Voltage Versions from 1.8 V to 4.75 V and Adjustable (1.22 V to 5.5 V)
● High PSRR (70 dB at 10 kHz)
● Low Noise (32 μVRMS, TPS79328)
● Fast Start-Up Time (50 μs)
● Stable With a 2.2-μF Ceramic Capacitor
● Excellent Load and Line Transient Response
● Very Low Dropout Voltage (112 mV at 200 mA, TPS79330)

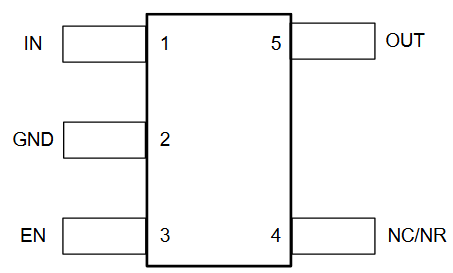

● 5- and 6-Pin SOT23 (DBV) and NanoStar Wafer Chip Scale (YZQ) Packages 2
APPLICATIONS
● RF: VCOs, Receivers, ADCs● Audio
● Cellular and Cordless Telephones
● Bluetooth®, Wireless LAN
● Handheld Organizers, PDAs 3
DESCRIPTION
NanoStar packaging gives an ultrasmall footprint as well as an ultralow profile and package weight, making these devices ideal for portable applications such as handsets and PDAs. Each device achieves fast start-up times (approximately 50 μs with a 0.001-μF bypass capacitor) while consuming very low quiescent current (170 μA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 μA.
