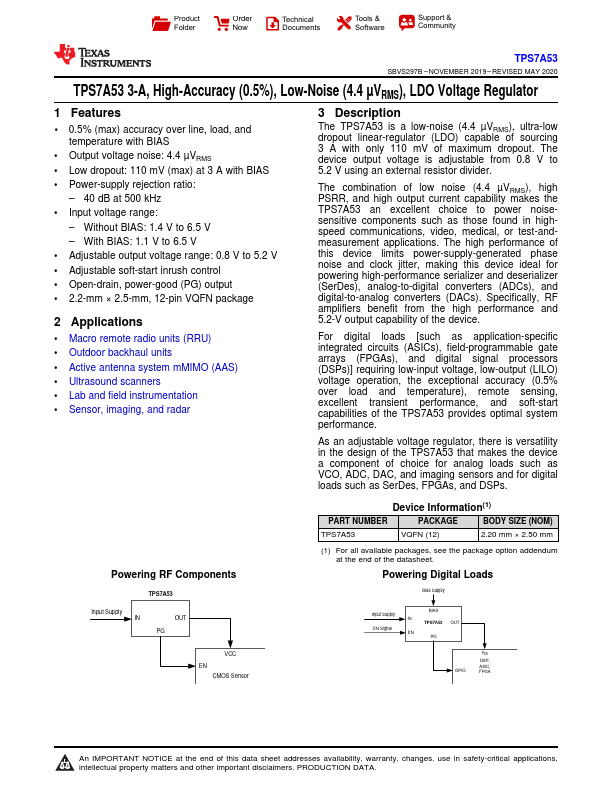

TPS7A53
Features
- 1 0.5% (max) accuracy over line, load, and temperature with BIAS
- Output voltage noise: 4.4 µVRMS
- Low dropout: 110 m V (max) at 3 A with BIAS
- Power-supply rejection ratio:
- 40 d B at 500 k Hz
- Input voltage range:
- Without BIAS: 1.4 V to 6.5 V
- With BIAS: 1.1 V to 6.5 V
- Adjustable output voltage range: 0.8 V to 5.2 V
- Adjustable soft-start inrush control
- Open-drain, power-good (PG) output
- 2.2-mm × 2.5-mm, 12-pin VQFN package
2 Applications
- Macro remote radio units (RRU)
- Outdoor backhaul units
- Active antenna system m MIMO (AAS)
- Ultrasound scanners
- Lab and field instrumentation
- Sensor, imaging, and radar
3 Description
The TPS7A53 is a low-noise (4.4 µVRMS), ultra-low dropout linear-regulator (LDO) capable of sourcing 3 A with only 110 m V of maximum dropout. The device output voltage is adjustable from 0.8 V to 5.2 V using an external resistor divider.
The bination of low noise (4.4 µVRMS), high PSRR, and high output current capability makes the TPS7A53...
