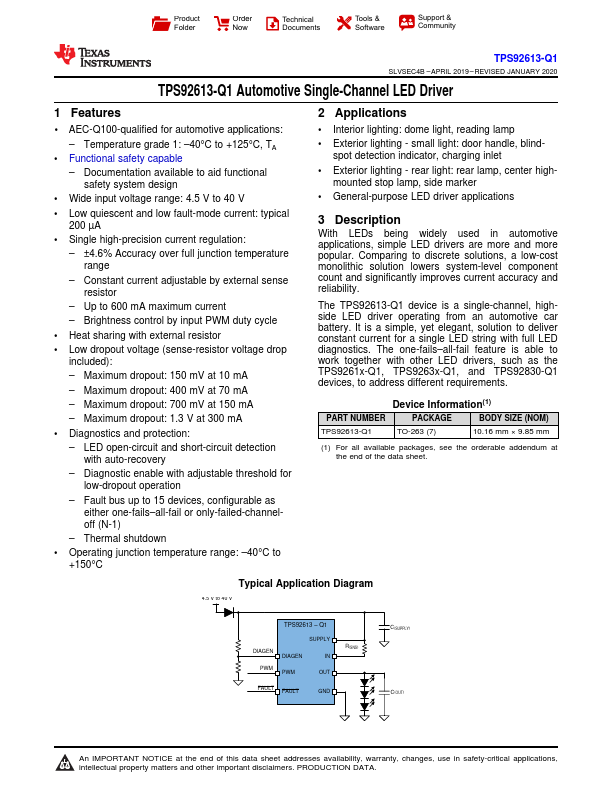

TPS92613-Q1
TPS92613-Q1 is Automotive Single-Channel LED Driver manufactured by Texas Instruments.
Features
- 1 AEC-Q100-qualified for automotive applications:
- Temperature grade 1:
- 40°C to +125°C, TA
- Functional safety capable
- Documentation available to aid functional safety system design
- Wide input voltage range: 4.5 V to 40 V
- Low quiescent and low fault-mode current: typical
200 µA
- Single high-precision current regulation:
- ±4.6% Accuracy over full junction temperature range
- Constant current adjustable by external sense resistor
- Up to 600 m A maximum current
- Brightness control by input PWM duty cycle
- Heat sharing with external resistor
- Low dropout voltage (sense-resistor voltage drop included):
- Maximum dropout: 150 m V at 10 m A
- Maximum dropout: 400 m V at 70 m A
- Maximum dropout: 700 m V at 150 m A
- Maximum dropout: 1.3 V at 300 m A
- Diagnostics and protection:
- LED open-circuit and short-circuit detection with auto-recovery
- Diagnostic enable with adjustable threshold for low-dropout operation
- Fault bus up to 15 devices, configurable as either one-fails- all-fail or only-failed-channeloff (N-1)
- Thermal shutdown
- Operating junction temperature range:
- 40°C to +150°C
2 Applications
- Interior lighting: dome light, reading lamp
- Exterior lighting
- small light: door handle, blind- spot detection indicator, charging inlet
- Exterior lighting
- rear light: rear lamp, center high- mounted stop lamp, side marker
- General-purpose LED driver applications
3 Description
With LEDs being widely used in automotive applications, simple LED drivers are more and more popular. paring to discrete solutions, a low-cost monolithic solution lowers system-level ponent count and significantly improves current accuracy and reliability.
The TPS92613-Q1 device is a single-channel, highside LED driver operating from an automotive car battery. It is a simple, yet elegant, solution to deliver constant current for a single LED string with full LED diagnostics. The one-fails- all-fail feature is able to work together with other LED drivers, such as the...
