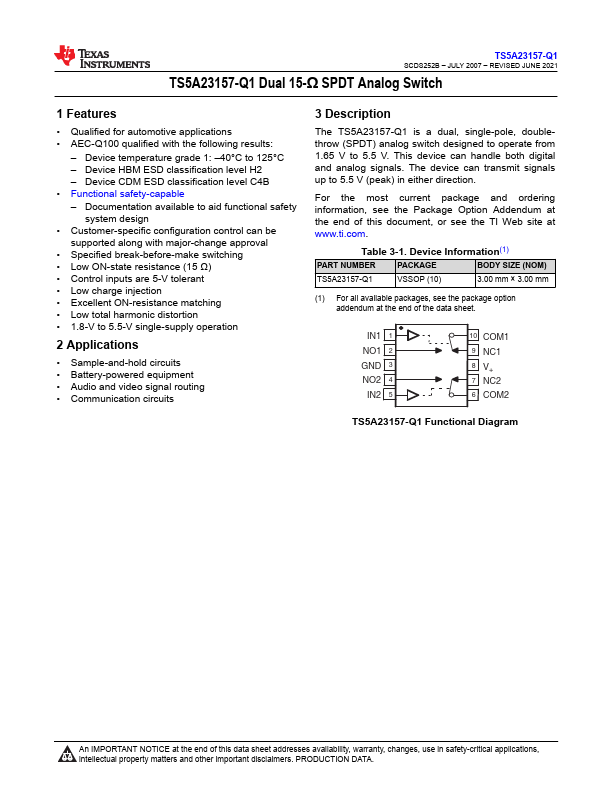

TS5A23157-Q1 Description

The TS5A23157 is a dual, single-pole, double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. The device can transmit signals up to 5.5 V (peak) in either direction.

TS5A23157-Q1 Key Features

Qualified for Automotive

TS5A23157-Q1 Applications

AEC-Q100 Qualified With the Following
Device Temperature Grade 1: -40ºC to
