TXU0104 - 4-Bit Fixed Direction Voltage-Level Translator

Description

TXU0104 is a 4-bit, dual-supply noninverting fixed direction voltage level translation device.

Ax pins are referenced to VCCA logic level, OE pin can be referenced to either VCCA or VCCB logic levels, and Bx pins are referenced to VCCB logic levels.

Features

Fully configurable dual-rail design allows each port to operate from 1.1 V to 5.5 V.
Up to 200 Mbps support for 3.3 V to 5.0 V.
Schmitt-trigger inputs allows for slow and noisy inputs.
Inputs with integrated static pull-down resistors prevent channels from floating.
High drive strength (up to 12 mA at 5 V).
Low power consumption.
2.5 µA maximum (25°C).
6 µA maximum (.
40°C to 125°C).
VCC isolation and VCC di.

Texas Instruments

📥 Download Datasheet

Datasheet Details

Part number	TXU0104
Manufacturer	Texas Instruments
File Size	2.52 MB
Description	4-Bit Fixed Direction Voltage-Level Translator
Datasheet	TXU0104 Datasheet

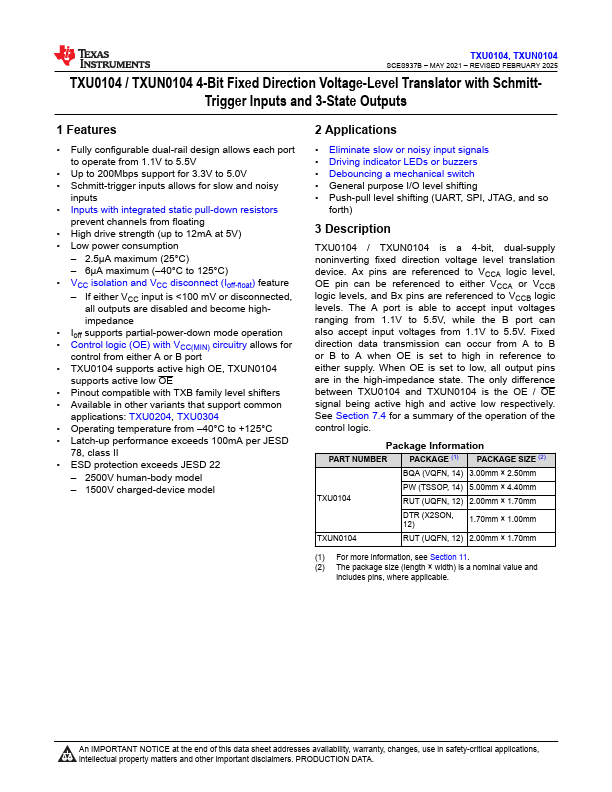

Additional preview pages of the TXU0104 datasheet.
