KH25L2026E Description
The.

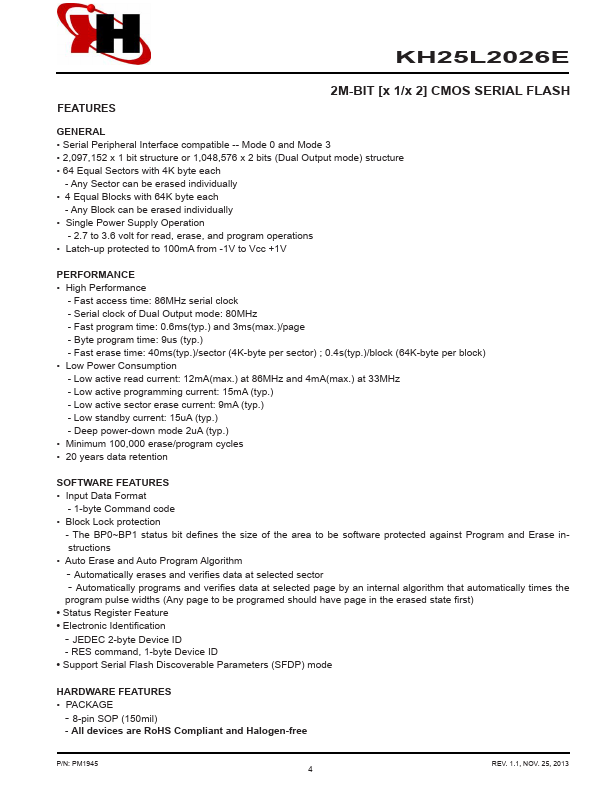

KH25L2026E Key Features
- Serial Peripheral Interface patible -- Mode 0 and Mode 3
- 64 Equal Sectors with 4K byte each
- Any Sector can be erased individually
- 4 Equal Blocks with 64K byte each
- Any Block can be erased individually
- Single Power Supply Operation
- 2.7 to 3.6 volt for read, erase, and program operations
- Latch-up protected to 100mA from -1V to Vcc +1V
- High Performance
- Fast access time: 86MHz serial clock
