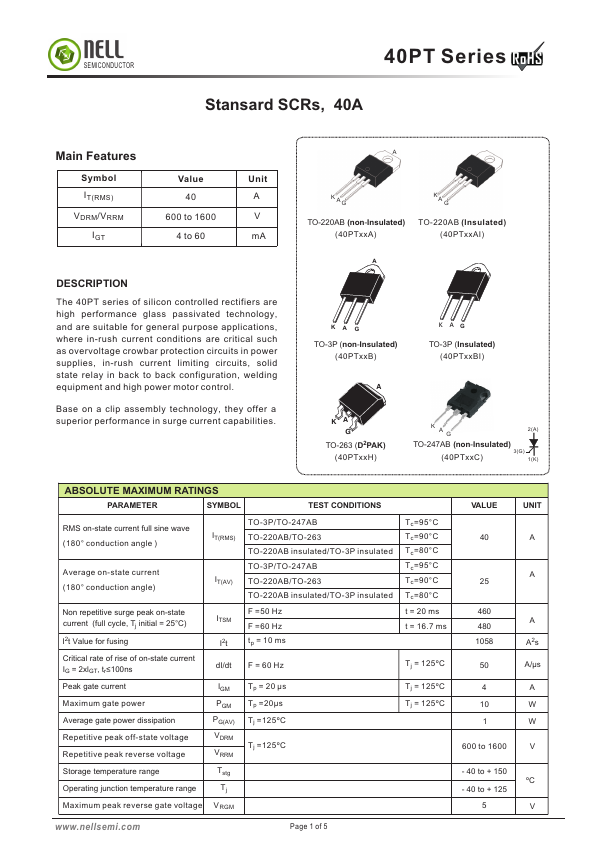

40PT06BI Datasheet PDF | Nell Power Semiconductor

Nell Power Semiconductor 40PT06BI

The 40PT series of silicon controlled rectifiers are high performance glass passivated technology, and are suitable for general purpose applications, where in-rush current conditions are critical such as overvoltage crowbar protection circuits in power supplies, in-rush current limiting circuits, solid state relay in back to back configuration, welding equipment and high power motor control.

Part No.	40PT06BI
Datasheet	40PT06BI Download
Manufacturer	Nell Power Semiconductor
Description	40A Stansard SCR
Buy	Stock & Price

FEATURES

Symbol IT(RMS) VDRM/VRRM IGT Value 40 600 to 1600 4 to 60 Unit A V mA

DESCRIPTION

Base on a clip assembly technology, they offer a superior performance in surge current capabilities. A K AG K A G TO-220AB (non-Insulated) TO-220AB (lnsulated) (40PTxxA) (40PTxxAI) A KA G TO-3P (non-Insulated) (40PTxxB) A K AG TO-3P (Insulated) (40PTxxBI) KA G TO-263 (D2PAK) (40PTxxH) K A 2(A) G TO-247AB (non-Insulated) 3(G) (40PTxxC) 1(K)

ABSOLUTE MAXIMUM RATINGS

PARAMETER SYMBOL TEST CONDITIONS RMS on-state current full sine wave (180° conduction angle ) Average on-state current (180° conduction angle) Non repetitive surge peak on-state current (full cycle, Tj initial = 25°C) I2t Value for fusing IT(RMS) IT(AV) ITSM I2t TO-3P/TO-247AB TO-220AB/TO-263 TO-220AB insulated/TO-3P insulated TO-3P/TO-247AB TO-220AB/TO-263 TO-220AB insulated/TO-3P insulated F =50 Hz F =60 Hz tp = 10 ms Tc=95°C Tc=90°C Tc=80°C Tc=95°C Tc=90°C Tc=80°C t = 20 ms t = 16.7 ms Critical rate of rise of on-state current IG = 2...
