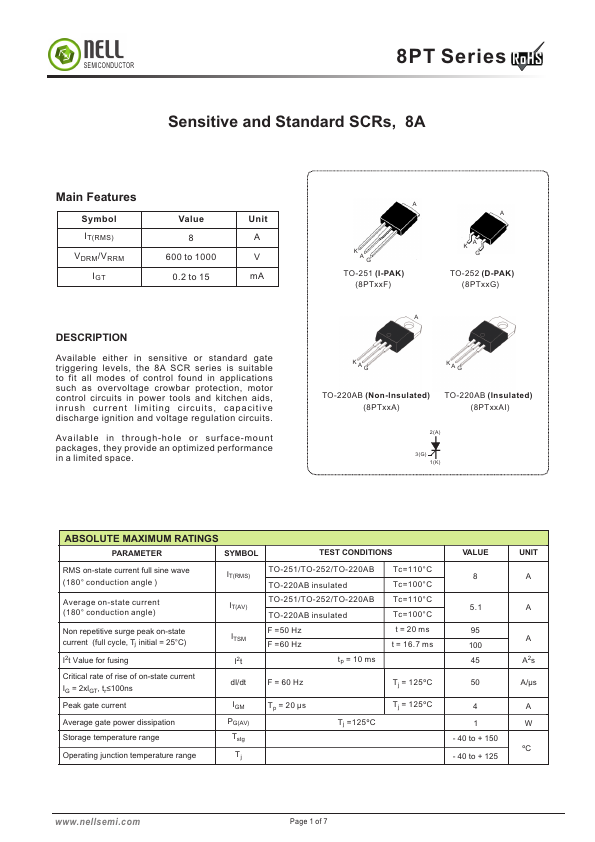

Nell Power Semiconductor 8PT10AI-T
Sensitive and Standard SCRs
| Part No. | 8PT10AI-T |
|---|---|
| Datasheet | 8PT10AI-T Download |
| Manufacturer |  Nell Power Semiconductor |
| Description | Sensitive and Standard SCRs |
| Buy | Stock & Price |
FEATURES
Symbol IT(RMS) VDRM/VRRM IGT Value 8 600 to 1000 0.2 to 15 Unit A V mADESCRIPTION
Available either in sensitive or standard gate triggering levels, the 8A SCR series is suitable to fit all modes of control found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition and voltage regulation circuits. Available in through-hole or surface-mount packages, they provide an optimized performance in a limited space. A K A G TO-251 (I-PAK) (8PTxxF) A A A K G TO-252 (D-PAK) (8PTxxG) KA G KA G TO-220AB (Non-lnsulated) TO-220AB (lnsulated) (8PTxxA) (8PTxxAI) 2(A) 3(G) 1(K)ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS RMS on-state current full sine wave (180° conduction angle ) Average on-state current (180° conduction angle) IT(RMS) IT(AV) TO-251/TO-252/TO-220AB TO-220AB insulated TO-251/TO-252/TO-220AB TO-220AB insulated Tc=110°C Tc=100°C Tc=110°C Tc=100°C...
