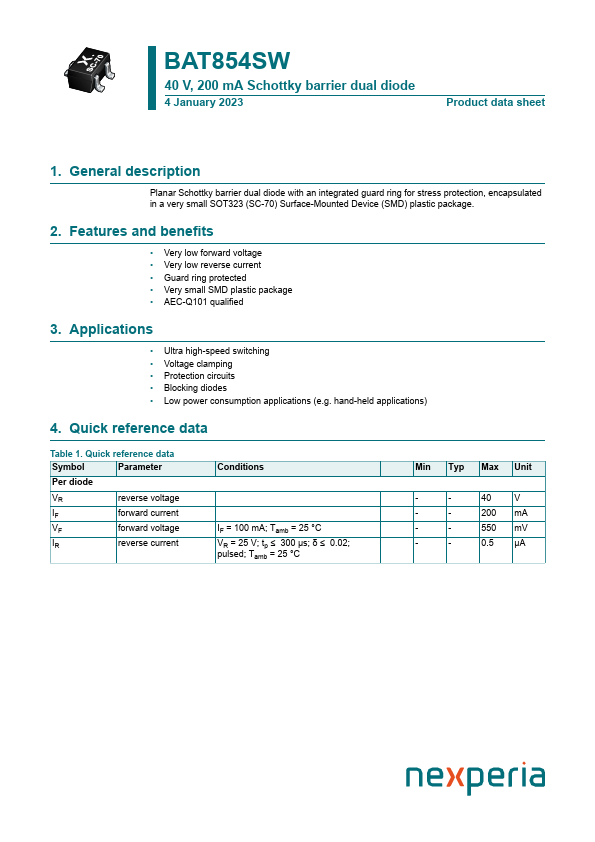

Nexperia BAT854SW
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.| Part No. | BAT854SW |
|---|---|
| Datasheet | BAT854SW Download |
| Manufacturer |  Nexperia |
| Description | 40V 200mA Schottky barrier dual diode |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● Very low forward voltage● Very low reverse current
● Guard ring protected
● Very small SMD plastic package
● AEC-Q101 qualified 3.
APPLICATIONS
● Ultra high-speed switching● Voltage clamping
● Protection circuits
● Blocking diodes

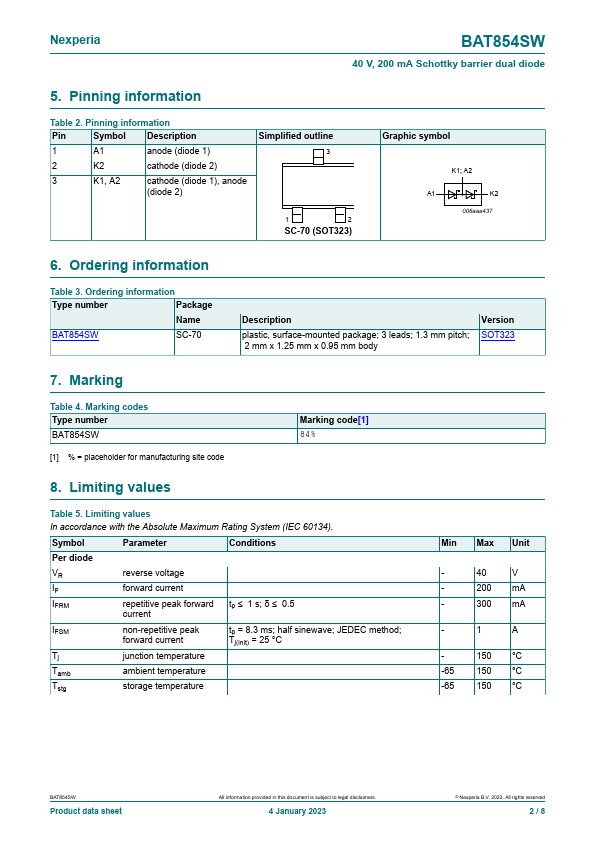

● Low power consumption applications (e.g. hand-held applications) 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IF forward current VF forward voltage IR reverse current Conditions IF = 100 mA; Tamb = 25 °C VR = 25 V; tp ≤ 300 µs; δ ≤ 0.02; pulsed; Tamb = 25 °C Min Typ Max Unit - - 40 V - - 200 mA - - 550 mV - - 0.5 µA Nexperia BAT854SW 40 V, 200 mA Schottky barrier dual diode 5. Pinning information Table 2. Pinning information Pin Symbol
DESCRIPTION
1 A1 anode (diode 1) 2 K2 cathode (diode 2) 3 K1, A2 cathode (diode 1), anode (diode 2) Simplified outline 3 1 2 SC-70 (SOT323) Graphic symbol K1; A2 A1 K2 006aaa437 6. Ordering information Table 3. Ordering information Type number Package Name BAT854SW SC-70DESCRIPTION
plastic, surface-mounted package; 3 leads; 1.3 mm pitch; 2 mm x 1.25 mm x 0.95 mm body Version SOT323 7.
