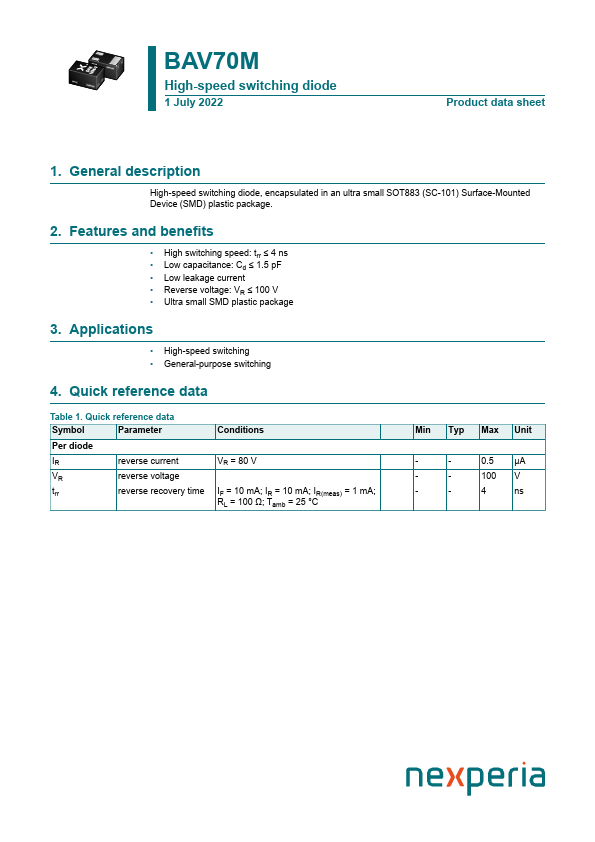

BAV70M
BAV70M is High-speed switching diode manufactured by Nexperia.
description
High-speed switching diode, encapsulated in an ultra small SOT883 (SC-101) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- High switching speed: trr ≤ 4 ns
- Low capacitance: Cd ≤ 1.5 p F
- Low leakage current
- Reverse voltage: VR ≤ 100 V
- Ultra small SMD plastic package
3. Applications
- High-speed switching
- General-purpose switching
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Per diode
IR reverse current
VR reverse voltage trr reverse recovery time
Conditions
VR = 80 V
IF = 10 m A; IR = 10 m A; IR(meas) = 1 m A; RL = 100 Ω; Tamb = 25 °C
Min Typ Max Unit
- -
0.5 µA
- -
100 V
- -
4 ns
Nexperia
High-speed switching diode

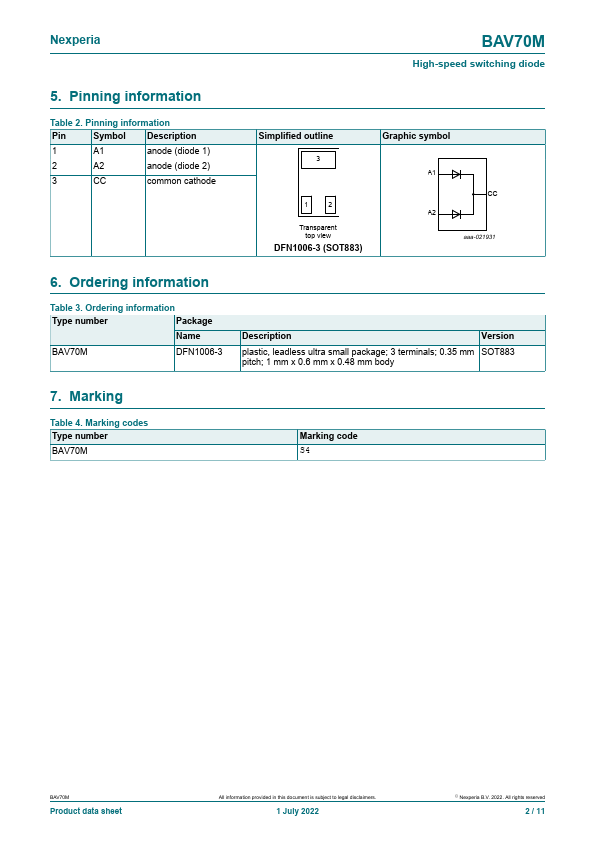

5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
A1 anode (diode 1)
A2 anode (diode 2)
CC mon...
