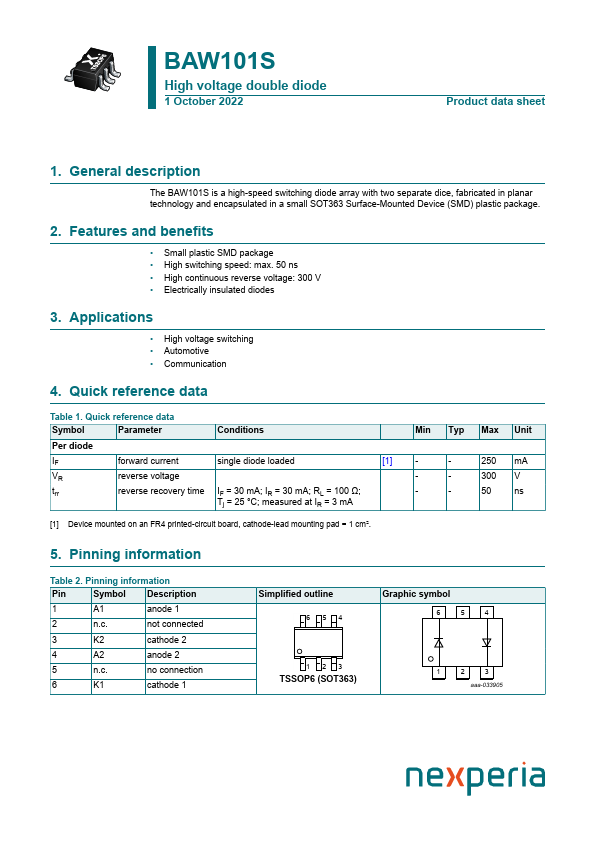

Datasheet Summary
High voltage double diode
1 October 2022
Product data sheet
1. General description
The BAW101S is a high-speed switching diode array with two separate dice, fabricated in planar technology and encapsulated in a small SOT363 Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Small plastic SMD package
- High switching speed: max. 50 ns
- High continuous reverse voltage: 300 V
- Electrically insulated diodes
3. Applications
- High voltage switching
- Automotive
- munication

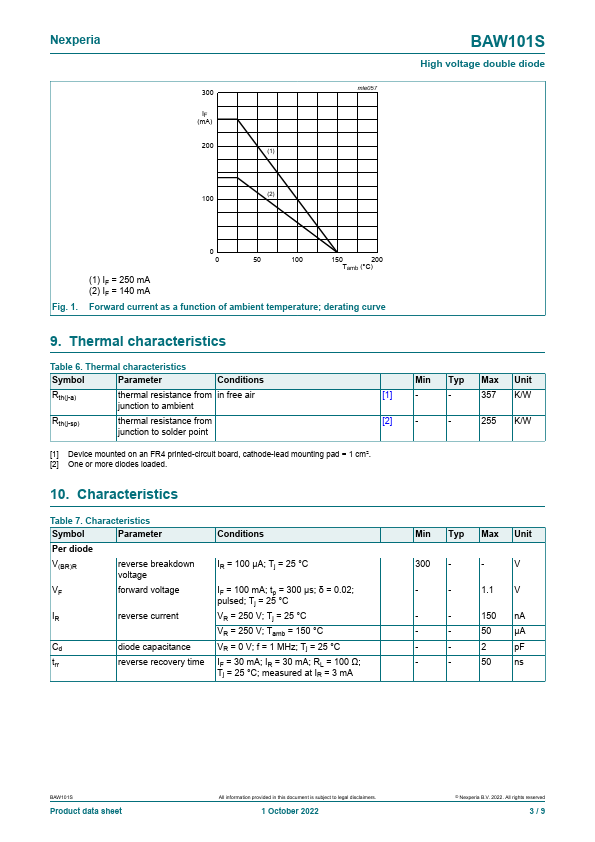

4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Conditions
Per diode
IF forward current single diode loaded
[1]
VR reverse voltage trr reverse...
